AU-206
Alarm unit (5 inputs)
- Description
- Specifications
- Files
- Support
- Where to buy

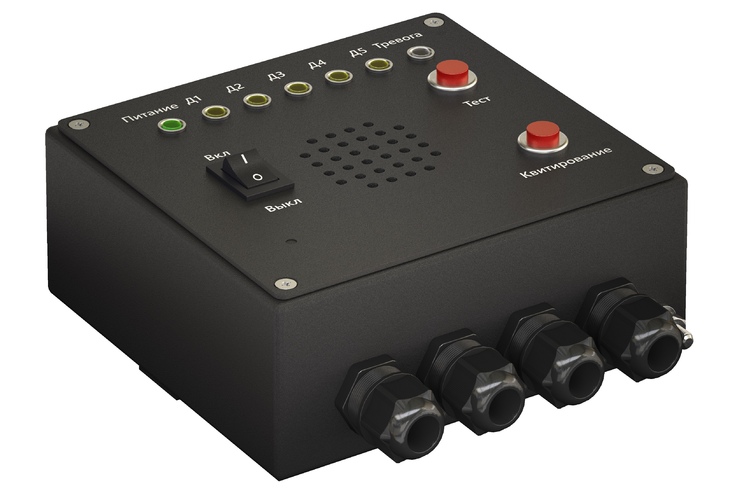

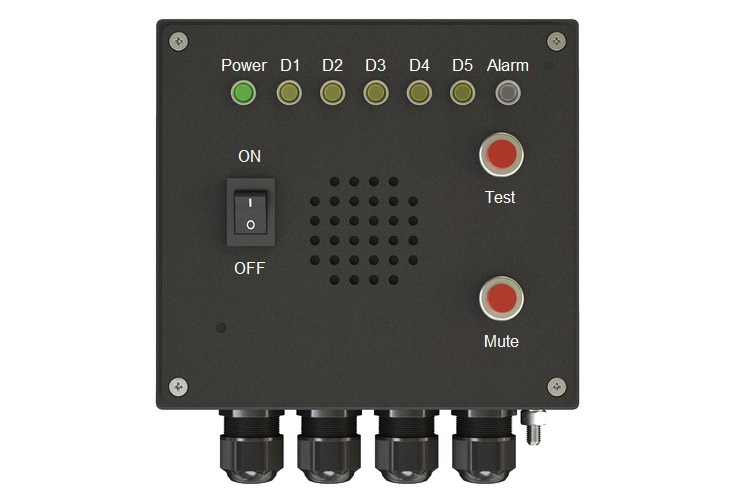

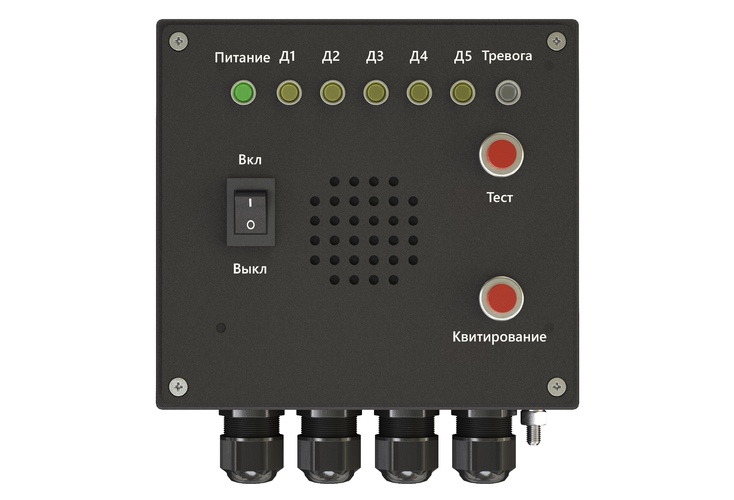

The AU-206 alarm unit controls the activation of external alarms on up to five simultaneously connected devices, having a dry contact type output. Triggered at least on a single output, an alarm causes sound/visual signal and closing of “power” output contacts, where external alarm devices may be connected (e.g. lamps, loudspeakers, etc.).
Install in a dry environment (IP22). The unit is provided with reverse polarity, current overload, overvoltage protection, and current overload protection on the “power” output.
Install in a dry environment (IP22). The unit is provided with reverse polarity, current overload, overvoltage protection, and current overload protection on the “power” output.
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications | |
| Dimensions | 120x130x51.5 mm |
| IP rating | IP 22 |
| Storage temperature | -55…+75 °С |
| Operating temperature | -25…+55 °С |
| Weight | max 0.7 kg |
| Power supply voltage | 9…36 V DC |
| Max power consumption | 3W |
| Galvanic isolation from power mains | + |
| Reverse polarity protection | + |
| Overvoltage protection | + |
| Inputs/outputs | |
| Numbers of inputs | 5 |
| Type of inputs | Dry contact disconnection sensor |
| Power output voltage | Equal to power supply voltage |
