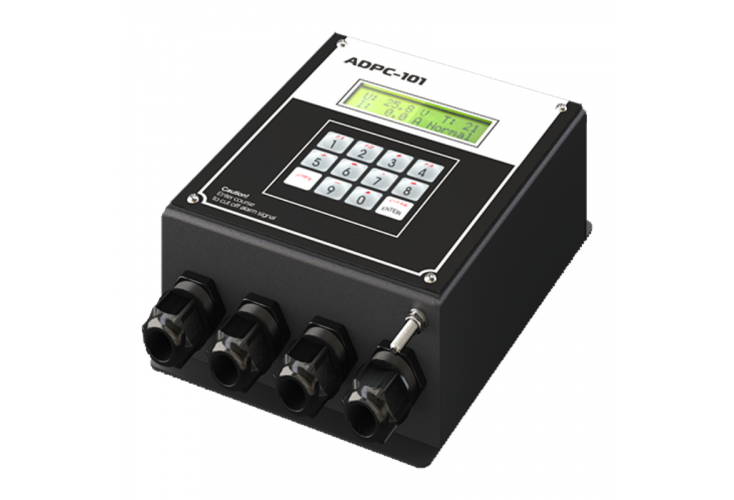

ADPC-101
Analog-to-digital converter (Gyrocompass and log signals)
- Description
- Specifications
- Files
- Support
- Where to buy
The ADPC-101 is designed to digitize obsolete analog signals from gyrocompasses and logs into NMEA 0183 format and transmit converted data to the relevant navigation equipment.
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications | |
| Power supply voltage | 10…36 VDC |
| Current consumption | max 150 mA |
| Connected equipment | |
| Gyrocompasses | -synchro type -stepper type |
| Logs | -stepper (pulses) type -with closing contact interface |
| Output signal | |
| Output signal format | NMEA-0183 1-3 (IEC-61162) with line checksum |
| Number of NMEA-0183 line options | 63 (configured) |
| Range of measured values | Data accuracy | |
| Speed | 0…99,9 knots | 0,1 knots |
| Course | 0…359,9 degrees | 0,1 degrees |
| Input signal | |
| Gyrocompass: | |
| Sine voltage of synchro windings | + |
| Voltage pulses | + (stepper type compass) |
| Voltage | max 350 V |
| Gyro ratio | 360x, 240x, 180x, 90x, 60x, 36x |
| Frequency | max 500 Hz |
| The rate of turn | max 80 degrees/s |
| Log: | |
| Voltage pulses | + (stepper type interface) |
| Closing contact | + |
| Voltage | max 350 W |
| The number of pulses per mile | 100/200/300/400/500/600 |
