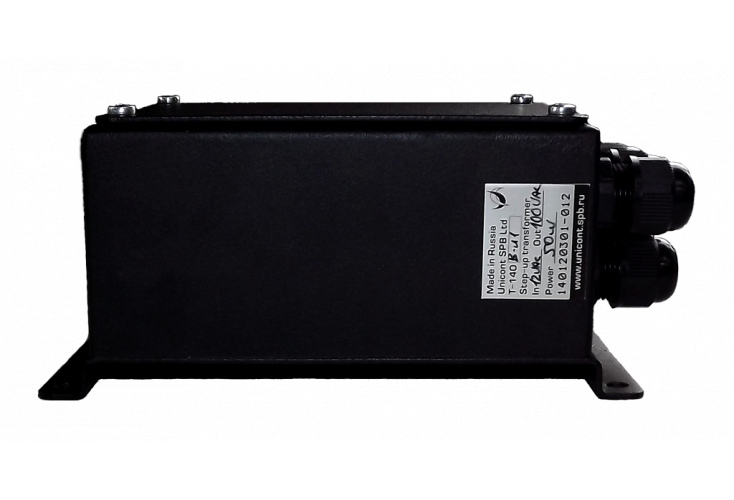

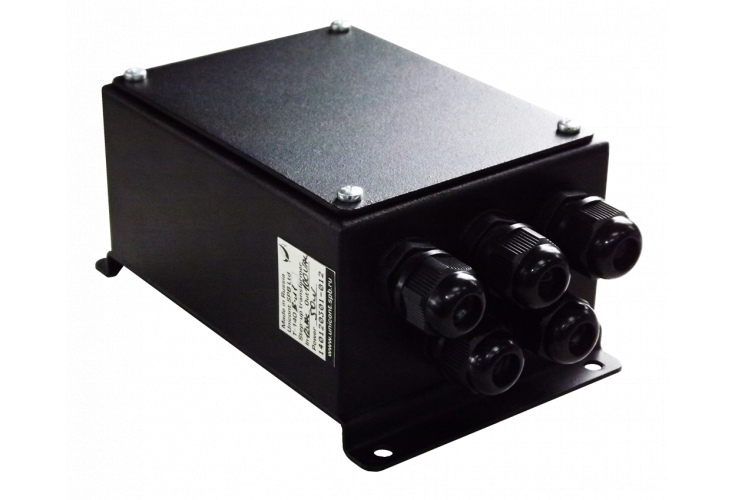

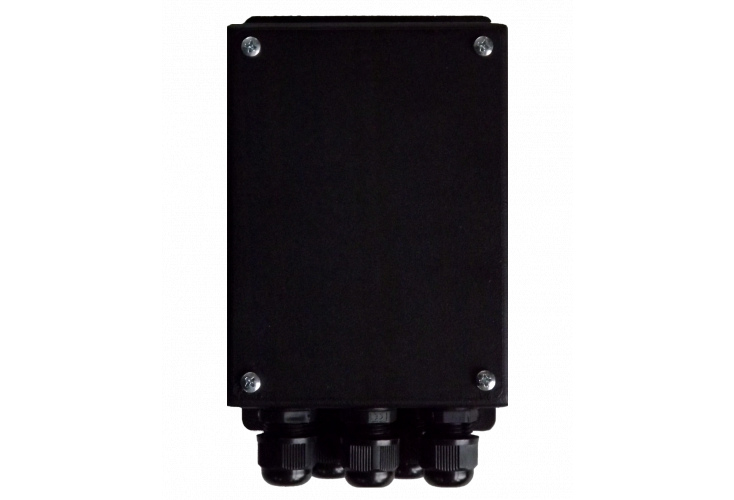

T-140
Transformer module
- Description
- Specifications
- Files
- Support
- Where to buy
The T-140 is designed to convert sound signals of different amplitudes within wide bandwidth, providing low distortion and noise suppression.
- Overall and mounting dimensions
- Wiring diagram
| Technical specifications | ||
| T-140B-U1 | T-140B-U2 | |
| Primary voltage | 12 V 50-15000 Hz | 24 V 50-15000 Hz |
| Secondary voltage | 100 V 50-15000 Hz | |
| Power | 50 W | |
| Number of terminals to connect load | 4, (short-circuit protection – fuse 0.5А) | |
| Protection | Galvanic isolation (insulation from the ground) | |
| Type of transformer | Step-up | |
| Dimensions | 110x195x82.6 mm | |
| IP rating | IP 22 | |
| Weight | 1.95 kg | |
