DFR-118
Multipurpose data converter
- Description
- Specifications
- Files
- Support
- Where to buy

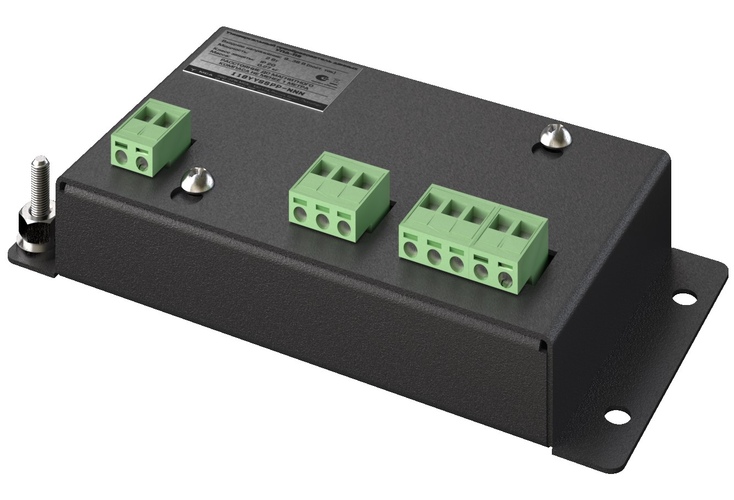

The DFR-118 data converter is designed to process received NMEA data and repeat them to units connected to the converter output port. Depending on the software used, the unit is capable to filter and change baud and frequency rate of the data stream, adjust letter and digit of the NMEA sentences and add a checksum.
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications |
| Overall dimensions |
136x66x21 mm |
| IP rating |
IP 22 |
| Storage temperature |
-55…+75 °С |
| Operating temperature |
-25…+55 °С |
| Weight |
max 0.2 kg |
| Electrical characteristics |
| Power supply voltage |
10…36 VDC |
| Current consumption |
max 100 mA |
| Galvanic isolation from power mains |
+ |
| Reverse polarity protection |
+ |
| Overvoltage protection |
+ (fuse) |
| Inputs |
| Number of input ports |
1 |
| Supported interfaces |
RS-232, RS-422 |
| Baud rate |
max 115200 bit/s |
| Outputs |
| Number of output ports |
1 |
| Supported interfaces |
RS-232, RS-422 |
| Baud rate |
4800-115200 bit/s |
Software can be customized on request.
