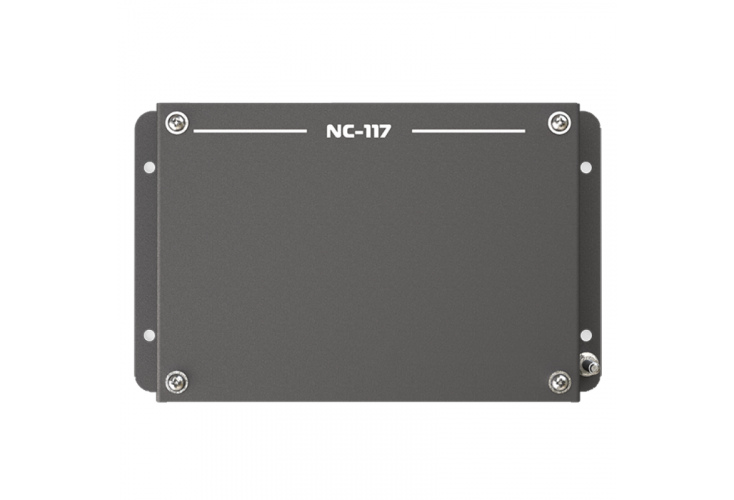

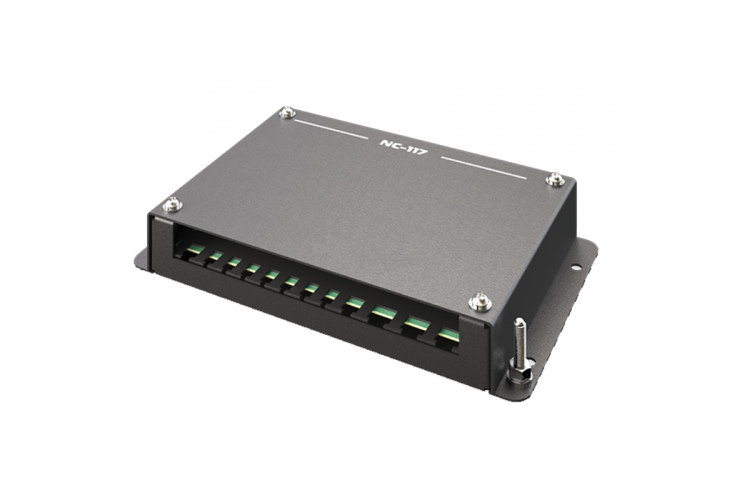

NC-117
Data combiner (4 outputs, 8 inputs, USB)
- Description
- Specifications
- Files
- Support
- Where to buy
The NC-117 receives NMEA 0183 messages via eight RS- 232/422 inputs and 1 USB port. It combines the received messages according to the customer settings and repeats them via four RS-232/422 outputs and 1 USB port.The unit will combine sentences of standards, starting with $ or ! or # and ending with and («carriage return» (CR) and “line feed” (LF) symbols).
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications |
| Overall dimensions |
194x117x29 mm |
| IP rating |
IP 22 |
| Storage temperature |
-55…+75 °С |
| Operating temperature |
-25…+55 °С |
| Weight |
max 0.4 kg |
| Electrical characteristics |
| Power supply voltage |
9…36 VDC |
| Power consumption |
max 3 W |
| Galvanic isolation from power mains |
+ |
| Reverse polarity protection |
+ |
| Overvoltage protection |
+ (fuse) |
| Inputs |
| Number of input ports |
8xRS-232/422 (or 7xRS-232/422 + 1xUSB) |
| Baud rate |
2400 - 115200 bit/s |
| Optoisolation |
+ |
| Outputs |
| Number of output ports |
3xRS-232/422 + 1xUSB |
| Baud rate |
2400 - 115200 bit/s |
| Data combining |
Configured for each port |
| Galvanic isolation |
+ |
