RS-104
Bidirectional RS-232/422 converter
- Description
- Specifications
- Files
- Support
- Where to buy

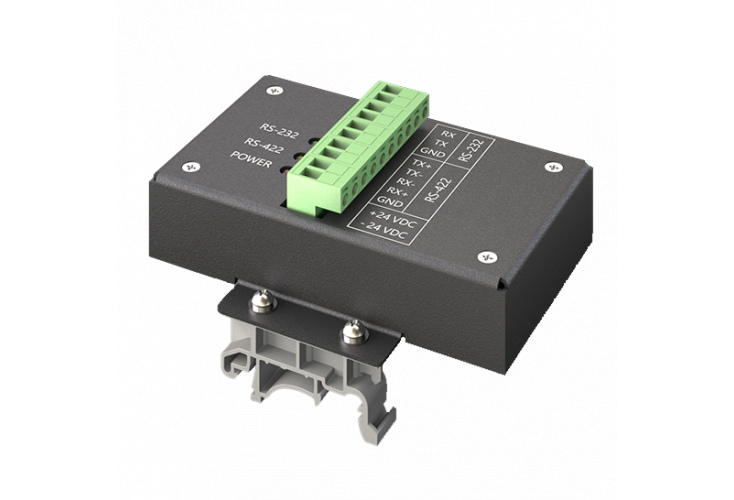

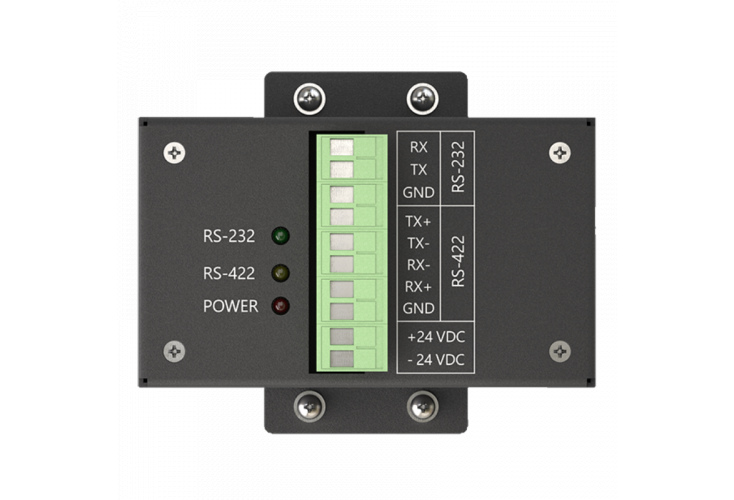

The RS-104 interface converter is designed for the signal conversion between two standards => RS-232 and RS-422. It is the solution to combine equipment operating with RS-232 or RS-422 signals on river- and sea-going vessels.
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications |
| Overall dimensions |
80x98x31 mm |
| Operating temperature |
-20…+60 °С |
| Weight |
0.2 kg |
| Electrical characteristics |
| Power supply voltage |
10…36 VDC |
| Current consumption |
max 120 mA |
| Galvanic isolation from power mains |
+ |
| Reverse polarity protection |
+ |
| Inputs |
| Number of input ports |
2 |
| Supported interfaces |
RS-232, RS-422 |
| Baud rate |
4800 bit/s (max 38400 bit/s) |
| Galvanic isolation |
+ |
| Outputs |
| Number of output ports |
2 |
| Supported interfaces |
RS-232, RS-422 |
| Baud rate |
4800 bit/s (max 38400 bit/s) |
| Galvanic isolation |
+ |
