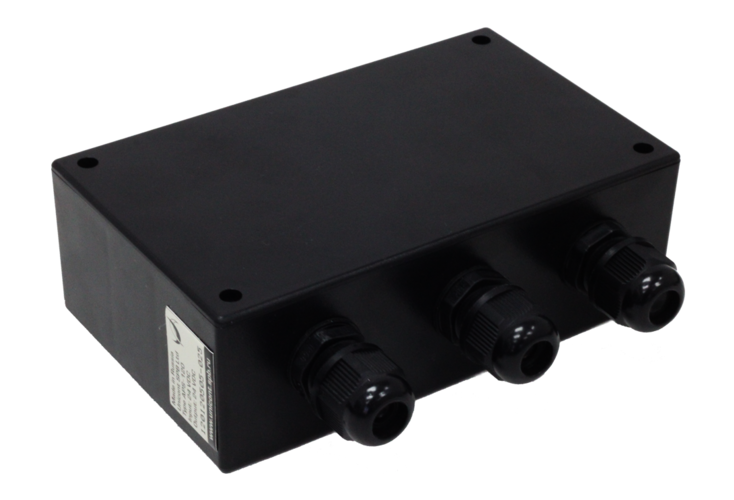

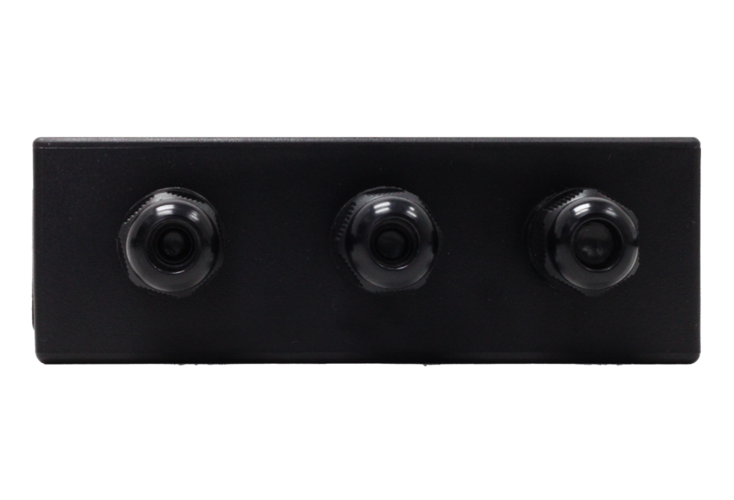

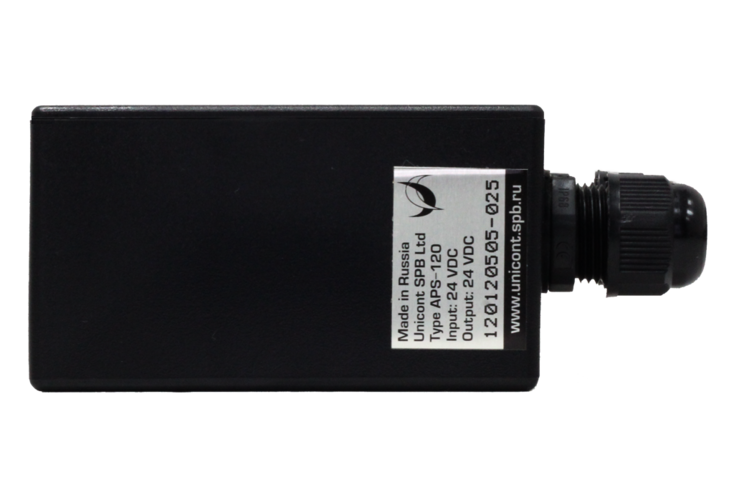

APS-120
Automatic power transfer switch
_734x500_3cc.png)
_734x500_3cc.png)
_734x500_3cc.png)
- Description
- Specifications
- Files
- Support
- Where to buy
The APS-120 Automatic power transfer switch provides a switchover to standby power in of a main power failure.
- Functional scheme
- Wiring diagram
| Technical specifications | |
| Dimensions | 158x127x54 mm |
| IP rating | IP 22 |
| Weight | 0.3 kg |
| Operating voltage | 24 V DC (12 V DC), from input IN1 |
| Standby power | 24 V DC (12 V DC) |
| Output voltage | repeats voltage N1 or N2, depending on the mode |
| Rated current of load | 20 А |
| Rated power | 1.5 W |
| Short-circuit protection | + |
