Power supply unit (built-in storage battery)

  • Description
  • Specifications
  • Files
  • Support
  • Where to buy

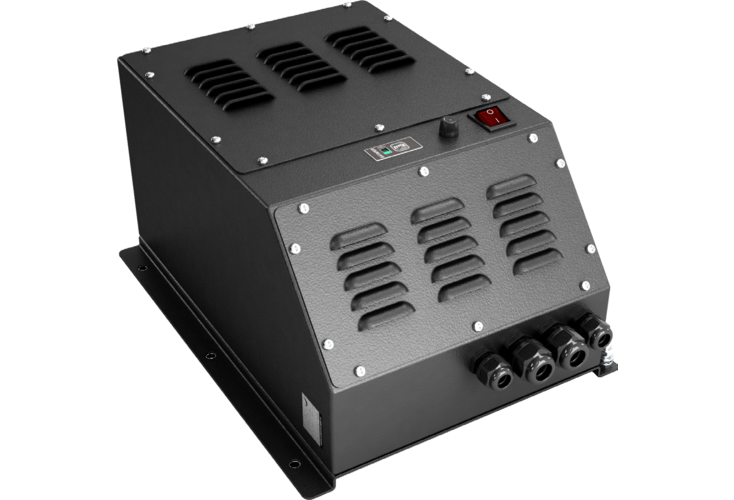

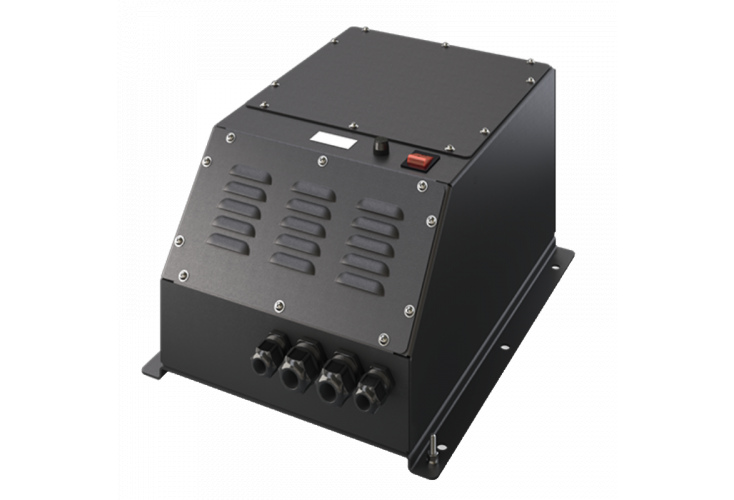

The BPS-114-24 uninterruptable power supply unit with maximum rated power 320W is designed to operate with single-phase mains of 50-60 Hz 110/220 VAC and to provide uninterruptable power supply for equipment with an input voltage of 24 VDC. The unit has a built-in storage battery with an automatic switchover in the event of a power supply failure. A power failure actuates the closing of built-in dry relay contacts, and a sound/light alarm is triggered.

Current charge level and power load indicators are on the front panel.

The BPS-114-24 has a galvanic isolation between the power mains / load and current overload protection. Dry environment installation (IP22).
  • Overall and mounting dimensions
  • Functional scheme
  • Wiring diagram
Technical specifications
Dimensions 410x295x205 mm
IP rating IP 22
Storage temperature -20…+60 °С
Operating temperature -10…+50 °С
Weight 16 kg
Power supply voltage ~110/220 V, 50/60 Hz
Output voltage, 110/220 V AC operation 27.5 V DC
Output voltage, operation from built-in battery 19.2…24.8 VDC
Rated load current, 110/220 V AC operation 12 А
Operation time from built-in battery with load 10 А min 60 minutes
Tripping current 20 А
Coefficient of efficiency 70%
Power 320 W
Battery built-in, maintenance-free gel, 2 pcs. 12 V 16 А*h, dimensions (181x76x167)
