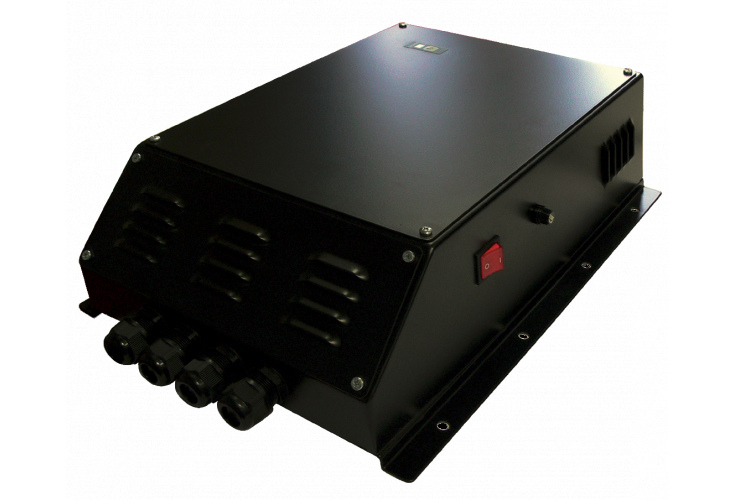

BPS-114
Power supply unit (built-in storage battery)
- Description
- Specifications
- Files
- Support
- Where to buy
The BPS-114 uninterruptable power supply unit with a maximum rated power 200W is designed to operate with single-phase mains of 50-60 Hz 110/220 VAC and to provide uninterruptable power for equipment with an input voltage of 12 VDC. The unit has a built-in storage battery with automatic switch over in of a power supply failure.
A power failure actuates the closing of built-in dry relay contacts and triggers a sound/light alarm. A current charge level and power level indicators are on the front panel.
The BPS-114 has a galvanic isolation between the power mains/load and current overload protection. Installation in a dry environment (IP22).
A power failure actuates the closing of built-in dry relay contacts and triggers a sound/light alarm. A current charge level and power level indicators are on the front panel.
The BPS-114 has a galvanic isolation between the power mains/load and current overload protection. Installation in a dry environment (IP22).
- Overall and mounting dimensions
- Wiring diagram
| Technical specifications | |
| Storage temperature | -10…+60 °C |
| Operating temperature | -30…+70 °C |
| Dimensions | 384x233x102 mm |
| Weight | 6 kg |
| Input voltage | 19…36 V DC |
| Output voltage | 24 V DC |
| Coefficient of efficiency | min 88% |
