CH-105
Automatic battery charger
- Description
- Specifications
- Files
- Support
- Where to buy

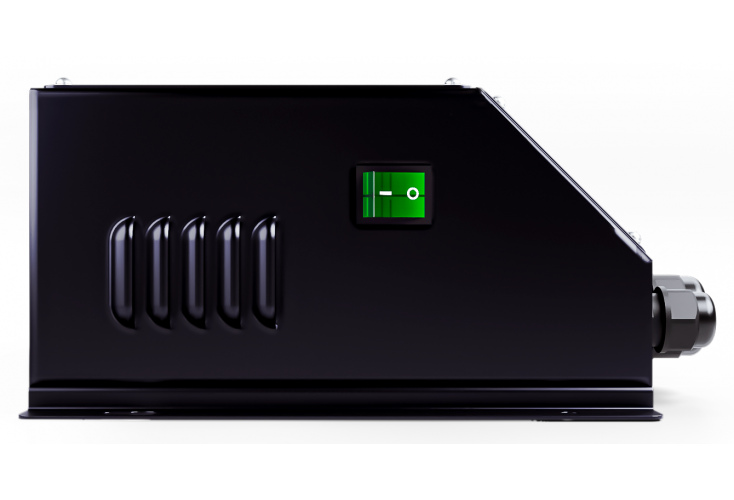

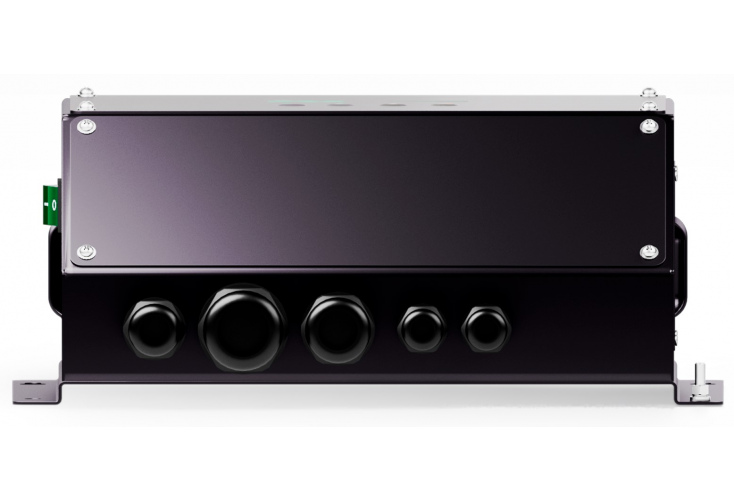

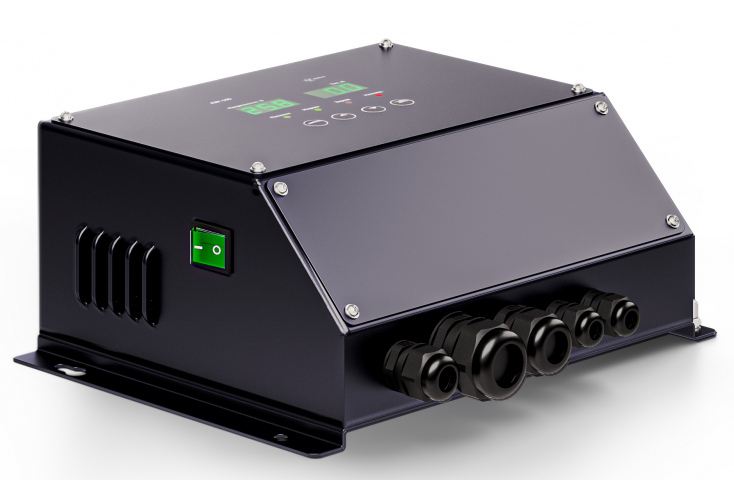

The CH-105 automatic battery charger operates with single-phase mains of 50-60 Hz 110/220 VAC or 24 VDC, depending on the design. It is used to charge different storage batteries automatically, providing a max output power of 600 W and an output to connect load.

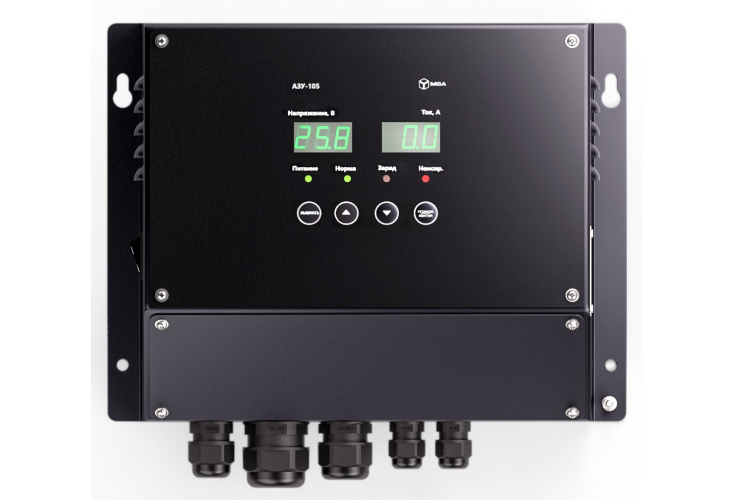

The unit is equipped with a built-in control and indication panel to set the charging modes and display the storage battery status. The CH-105 can be optionally equipped with the external control panel BCP-136. Install in a dry environment (IP22). The device has a reverse polarity protection of the main power and storage battery, and a current overload protection. Deep discharge and overheat protection are optional (provided that the thermal sensor DTS-135 is used).
The unit is equipped with a built-in control and indication panel to set the charging modes and display the storage battery status. The CH-105 can be optionally equipped with the external control panel BCP-136. Install in a dry environment (IP22). The device has a reverse polarity protection of the main power and storage battery, and a current overload protection. Deep discharge and overheat protection are optional (provided that the thermal sensor DTS-135 is used).
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications | |||||
| Model | CH-105 | CH-105-24 | CH-105-2412A | CH-105-110 VDC | CH-105-220 VDC |
| Power supply voltage | ~110/220 V, 50/60 Hz | 24 VDC (19…72 V) | 110 VDC | 220 VDC | |
| Max output power | 600 W | 500 W | 350 W | 500 W | 420 W |
| Charging current | 1…20 A | 1…16 A | 1…12 A | 1…16 A | 1…14 A |
| Charging voltage | 9…30 VDC (to charge a battery with operating voltage 12 V or 24 V) | ||||
| Rated capacity of charged batteries | 40-200 A*h | 40-160 A*h | 40-120 A*h | 40-160 A*h | 40-140 A*h |
| Dimensions | 345x310x140 mm | ||||
| IP rating | IP 22 | ||||
| Storage temperature | -60…+70 °С | ||||
| Operating temperature | -20…+55 °С | ||||
| Weight | 7 kg | ||||
- Built-in protection
- reverse polarity protection;
- power loss protection;
- excessive current in AB circuit (overload / short-circuit);
- connection of AB with reverse polarity;
- deep discharge protection (optional function);
- overheating protection (using the DTS-135 thermal sensor).
- Certificates
- Type approval certificate of Russian Maritime Register of Shipping (RU | EN) - NPK Morsvyazavtomatica (pdf, 1,95 MB)
- Type approval certificate of Russian River Register of Shipping (pdf, 7,3 MB)
- Booklets
- Booklet (pdf, 542,2 KB)
