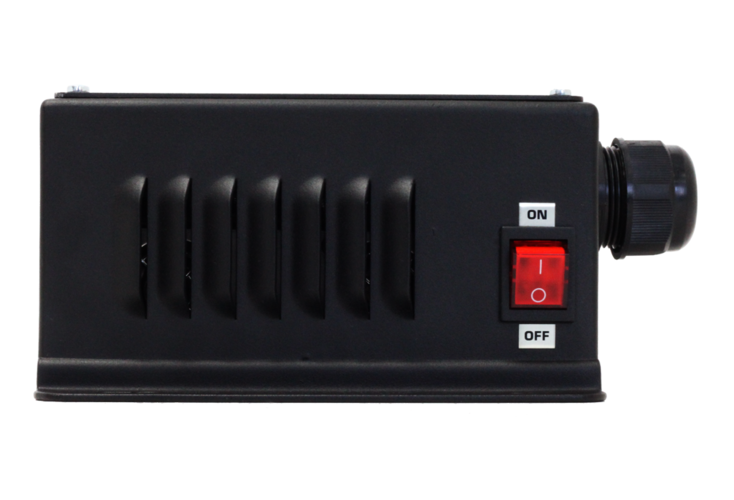

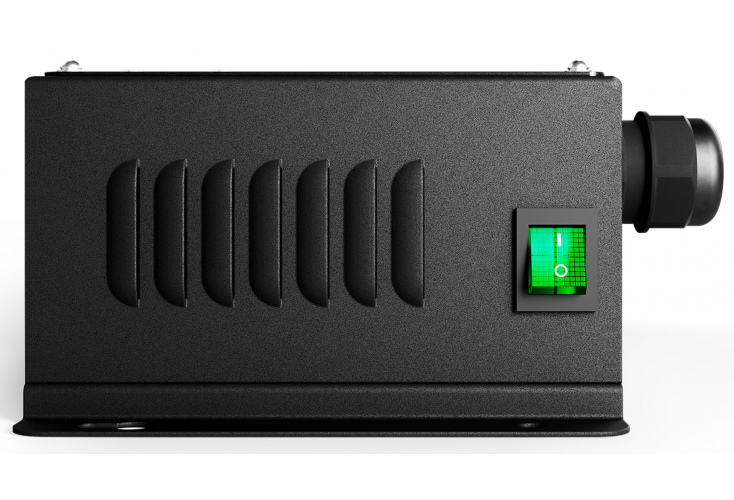

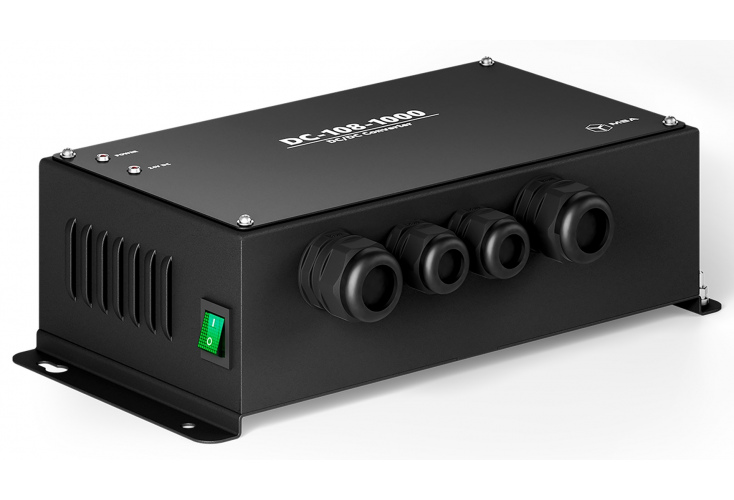

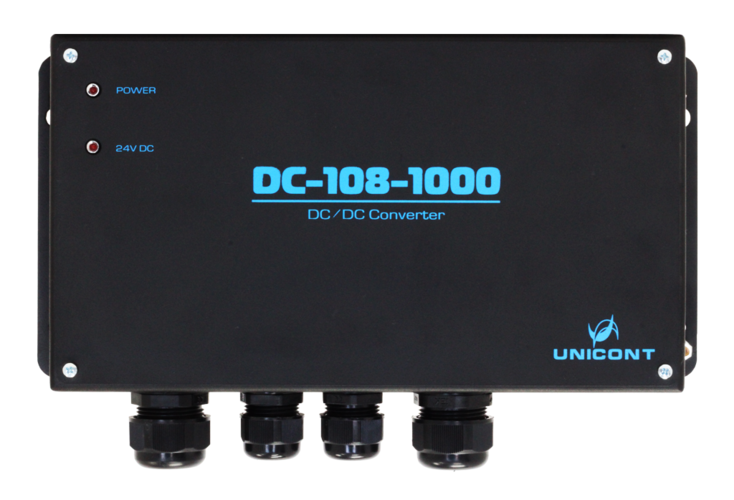

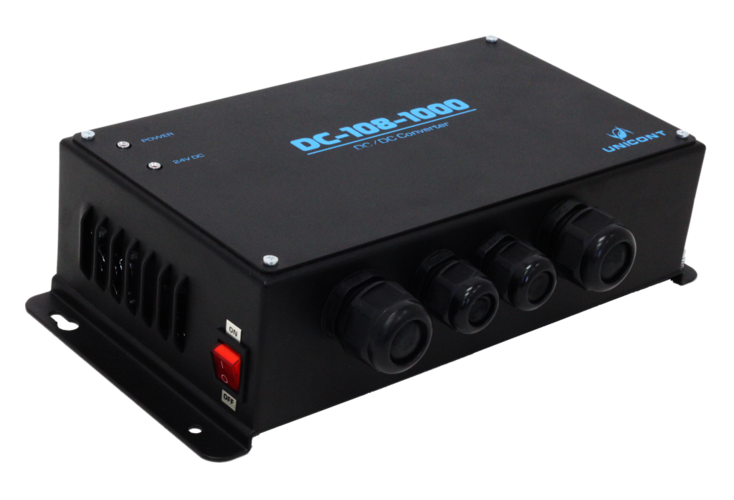

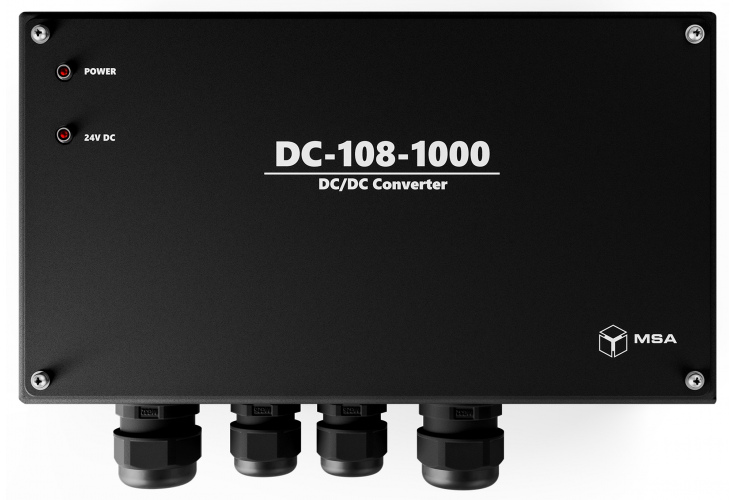

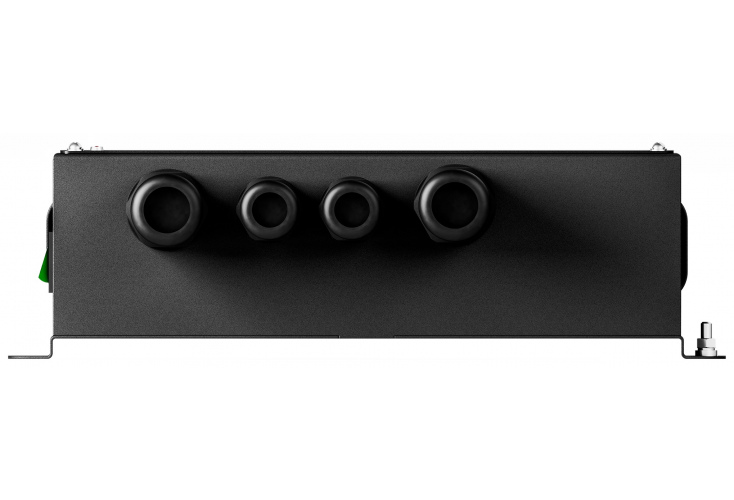

DC-108-1000
DC/DC converter
- Description
- Specifications
- Files
- Support
- Where to buy
The DC-108-1000 operates with the mains of 24 VDC, converts the input voltage into a regulated VDC and protects electronic equipment against input voltage surges and peaks. The rated power is 960 W.
The unit has a galvanic isolation between the power mains and load, reverse polarity, overvoltage and overload protection by input circuit. Dry environment installation (IP22).
The unit has a galvanic isolation between the power mains and load, reverse polarity, overvoltage and overload protection by input circuit. Dry environment installation (IP22).
- Overall and mounting dimensions
- Wiring diagram
| Technical specifications | |
| Storage temperature | -10…+60 °C |
| Operating temperature | -30…+70 °C |
| Dimensions | 384x233x102 mm |
| Weight | 6 kg |
| Input voltage | 19…36 V DC |
| Output voltage | 24 V DC |
| Coefficient of efficiency | min 88% |
