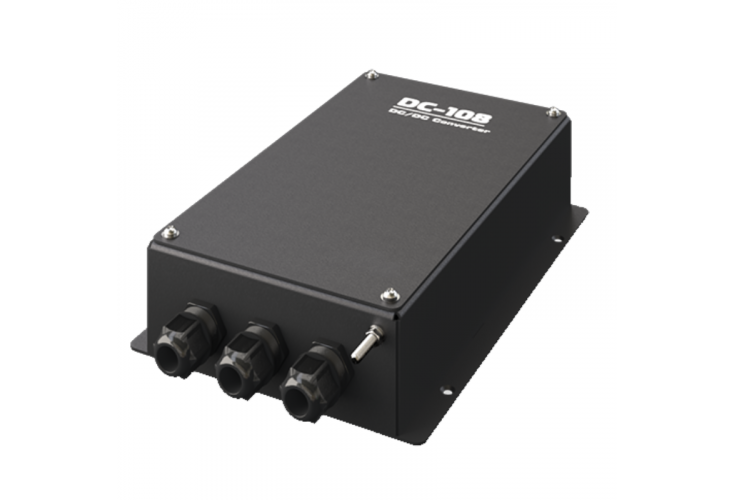

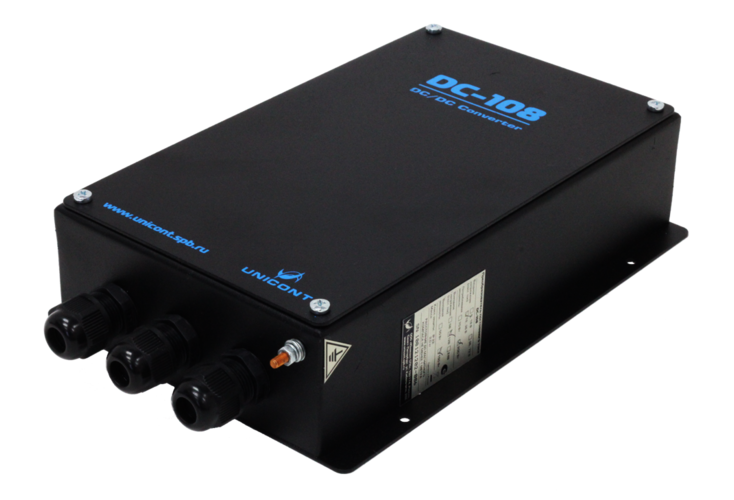

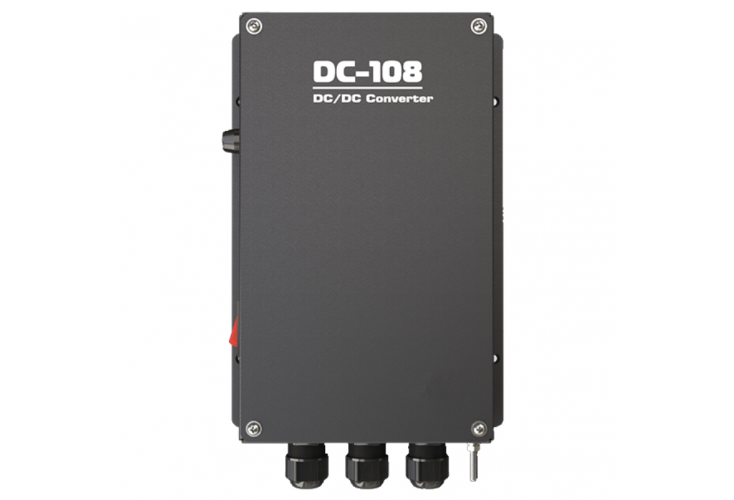

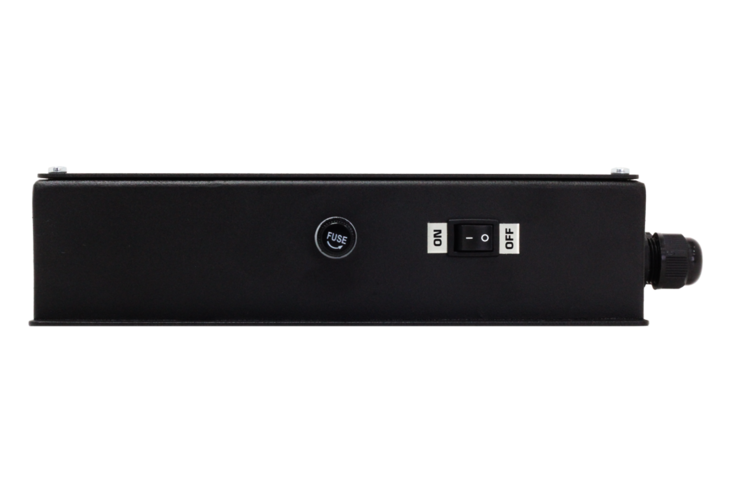

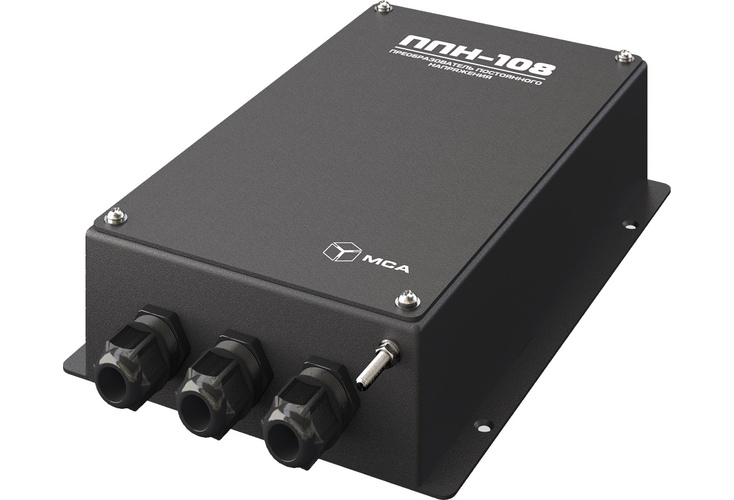

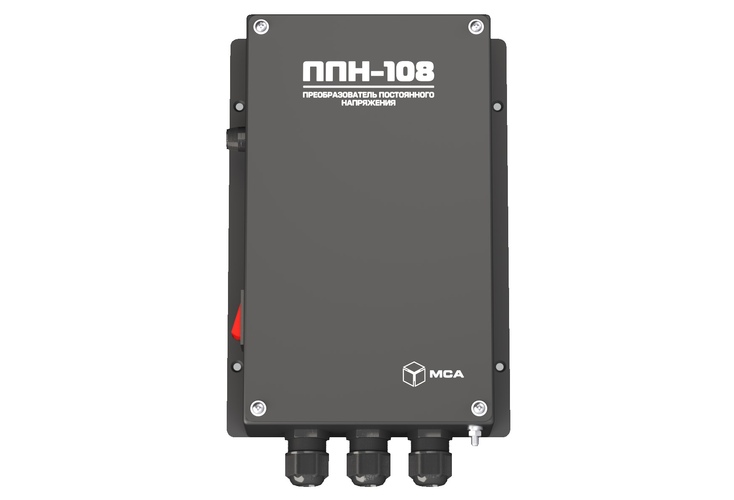

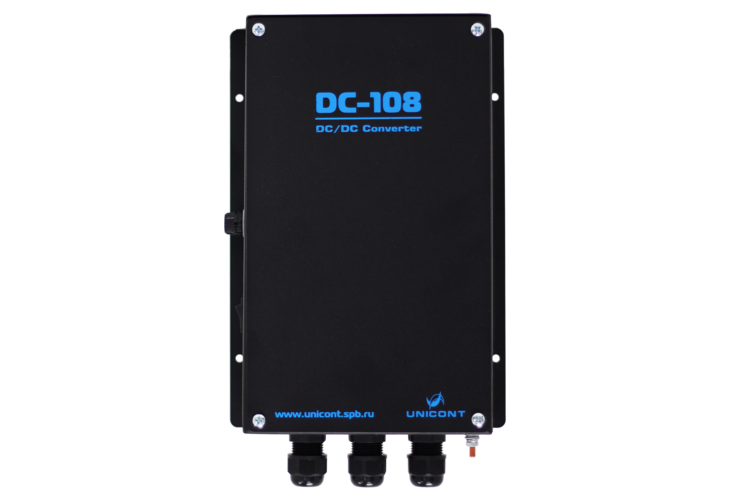

DC-108
DC/DC converter
- Description
- Specifications
- Files
- Support
- Where to buy
The DC-108 operates with the mains of 12/24/110 VDC and converts the input voltage into a regulated 12/24 VDC, required to protect equipment, which is sensitive to input voltage surges and peaks.
The unit has a galvanic isolation between the supply mains and the load, reverse polarity, overvoltage and overload protection. Dry environment installation (IP22).
The unit has a galvanic isolation between the supply mains and the load, reverse polarity, overvoltage and overload protection. Dry environment installation (IP22).
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Electrical characteristics | |||||
| Model | Power | Max. current | Input voltage | Output voltage | Coefficient of efficiency |
| 12/5 - 50 W | 50 W | 10 A | 9…18 VDC | 5 VDC | 70% |
| 24/5 - 50 W | 19…36 VDC | 73% | |||
| 48/5 - 50 W | 36…72 VDC | 76% | |||
| 12/12 - 50 W | 4.2 А | 9…18 VDC | 12 VDC | 72% | |
| 24/12 - 50 W | 19…36 VDC | 75% | |||
| 48/12 - 50 W | 36…72 VDC | 78% | |||
| 12/24 - 50 W | 2.1 А | 9…18 VDC | 24 VDC | 74% | |
| 24/24 - 50 W | 19…36 VDC | 80% | |||
| 48/24 - 50 W | 36…72 VDC | 83% | |||
| 24/12 - 150 W | 150 W | 12.5 А | 19…36 VDC | 12 VDC | 75% |
| 48/12 - 150 W | 36…72 VDC | 77% | |||
| 96/12 - 150 W | 72…144 VDC, 85…132 VDC | 79% | |||
| 24/24 - 150 W | 6.3 А | 19…36 VDC | 24 VDC | 77% | |
| 48/24 - 150 W | 36…72 VDC | 80% | |||
| 96/24 - 150 W | 72…144 VDC, 85…132 VDC | 82% | |||
The DC-108 can be optionally supplied with various power and voltage.
