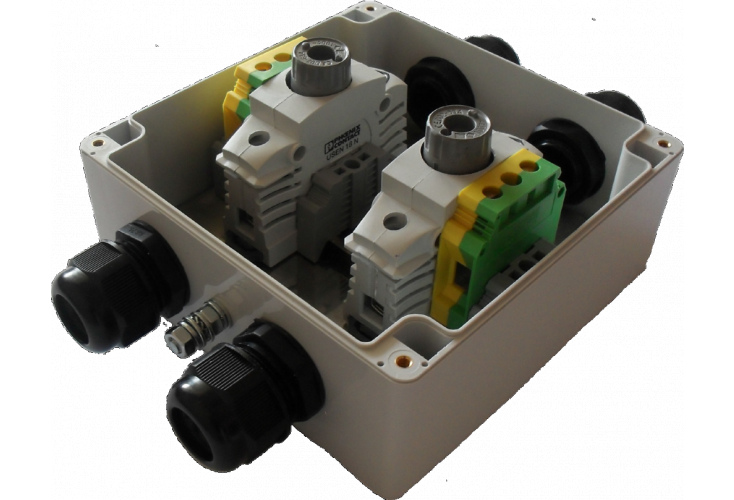

The FB-137 fuse box protects electric circuits and relevant elements from short circuit or overcurrent.
  • Overall and mounting dimensions
  • Functional scheme
  • Wiring diagram
Technical specifications
Dimensions 160x240x90 mm
IP rating IP 22
Storage temperature -60…+70 °С
Operating temperature -20…+55 °С
Weight 1.5 kg
Operating voltage 12-250 VDC or 400 VAC
Rated current 50 А

*fuse may be changed.
