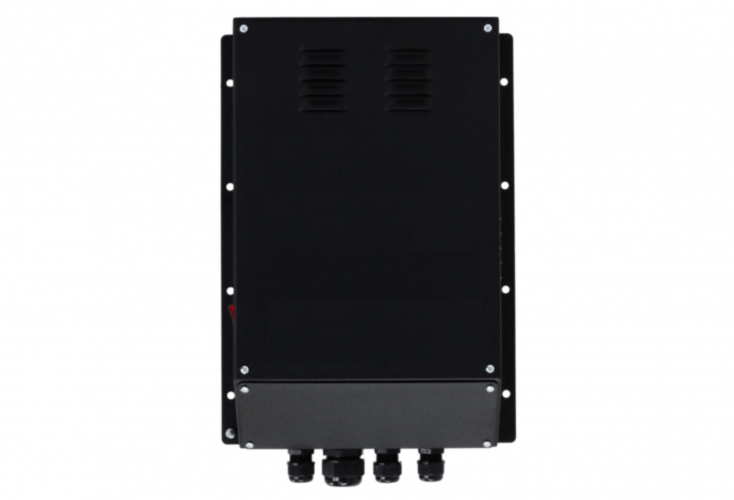

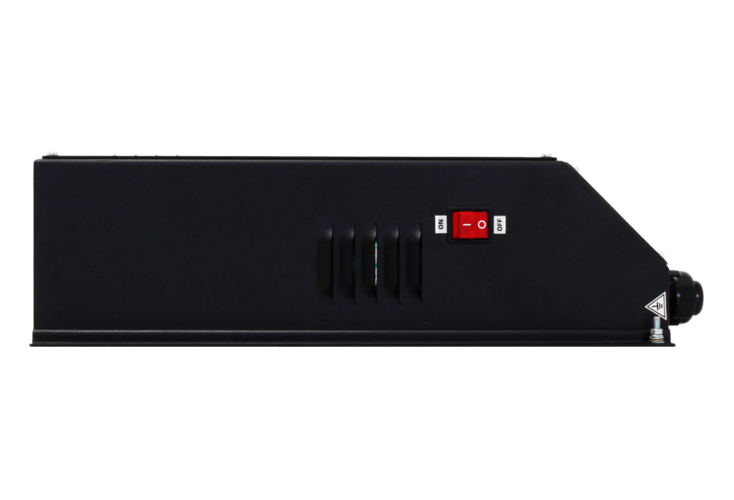

PS-203-35
Power supply unit
- Description
- Specifications
- Files
- Support
- Where to buy
The PS-203-35 operates with single-phase AC, frequency 50 (60) Hz, voltage 110 V or 220 V. It powers different shipborne and industrial equipment with regulated voltage 12 VDC.
The PS-203-35 has a function of load switch to standby power.
The PS-203-35 has a function of load switch to standby power.
|
Parameter |
Value |
|
Input supply voltage, AC, frequency 50 (60) Hz, V |
110 (90 to 132)* 220 (180 to 264)* |
|
Consumption current, A |
10 (115 V, 47 to 63 Hz) 6 (230 V, 47 to 63 Hz) |
|
Rated output voltage, DC, V |
12 |
|
Load current, А |
35 (max. 37.5) |
|
Power consumption, W |
543 |
|
Output power, W |
450 |
|
Pulses, mV |
200 |
|
Number of load terminals, pcs. |
2 |
|
Protection degree |
IP22 |
|
Operating temperature, °С |
–15 to +55 |
|
Limiting temperature, °С |
–60 to +70 |
|
Weight, kg |
7.6 |
|
Integrated protection |
- Galvanic isolation of input and output power circuits - SC and overload |
|
Mounting |
wall |
|
* Supply voltage range is given in parenthesis. |
|
