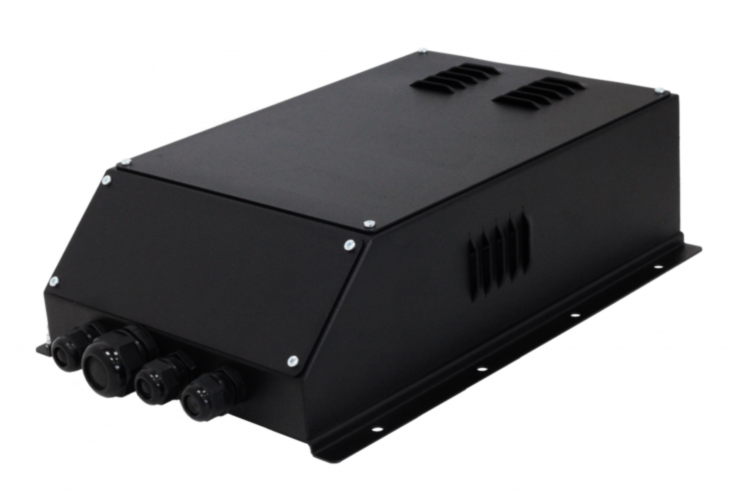

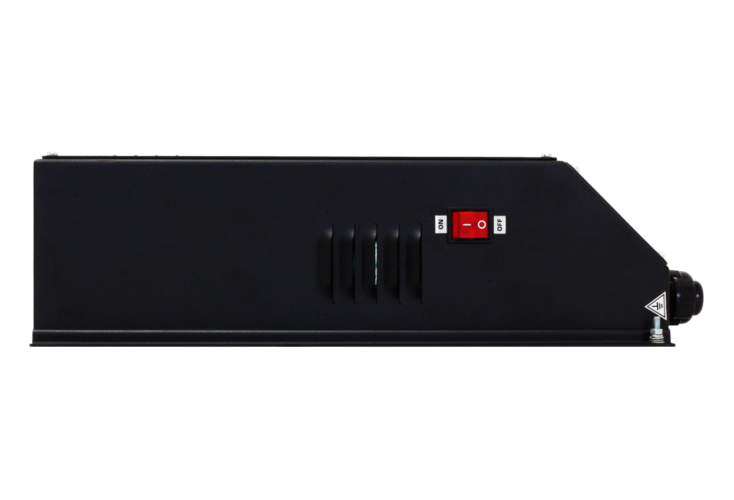

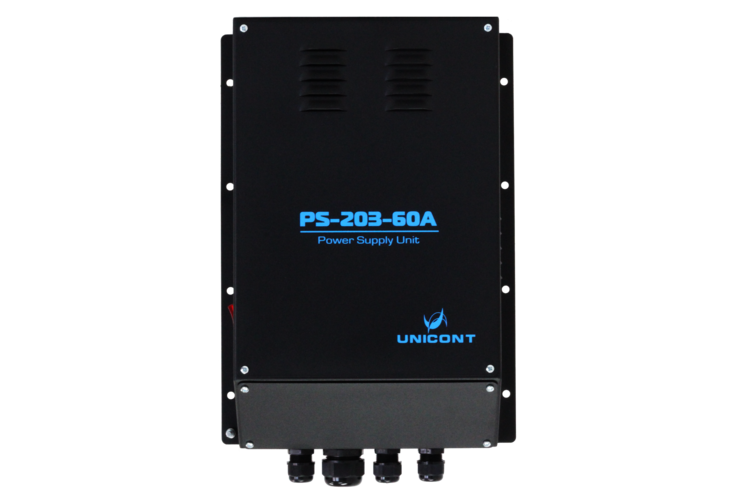

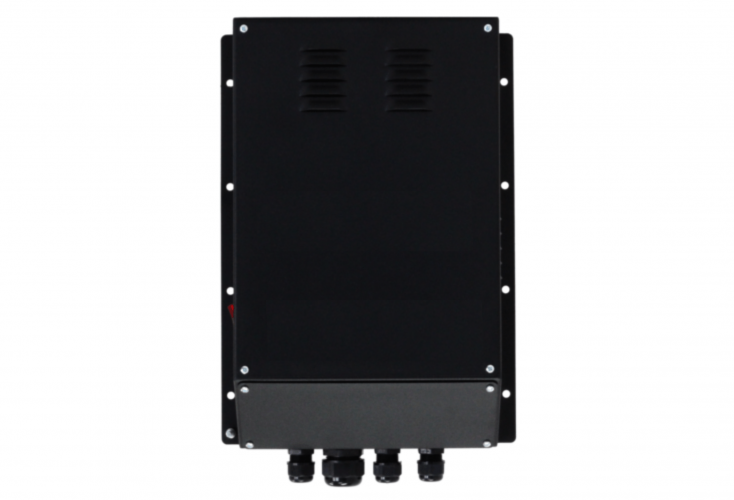

PS-203-60

Power supply unit

  • Description
  • Specifications
  • Files
  • Support
  • Where to buy
The Product supplies different shipborne and industrial equipment with regulated voltage 24 V DC. The Product has integrated functions of load redundancy (power), and load switching to external SB or emergency DC network in case of main power failure.
Parameter Value
Input voltage, V AC frequency 50 (60) Hz 90…246*
DC 127…370*
Rated output voltage, DC, V 24
Load current, А 63
Power consumption, W 1667
Output power, W 1500
Pulses, mV 150
Efficiency, % 90
Number of load terminals, pcs. 2
Protection degree IP22
Operating temperature, °С –15…+55
Limiting temperature, °С –60…+70
Weight, kg 10
Integrated protection
  • Galvanic isolation of output power from supply mains 3 kV
  • SC and overload
Mounting wall
* Указан диапазон питающего напряжения. В качестве сигнализации может использоваться блок сигнализации AU-106.

The AU-106 may be used as an alarm unit.
