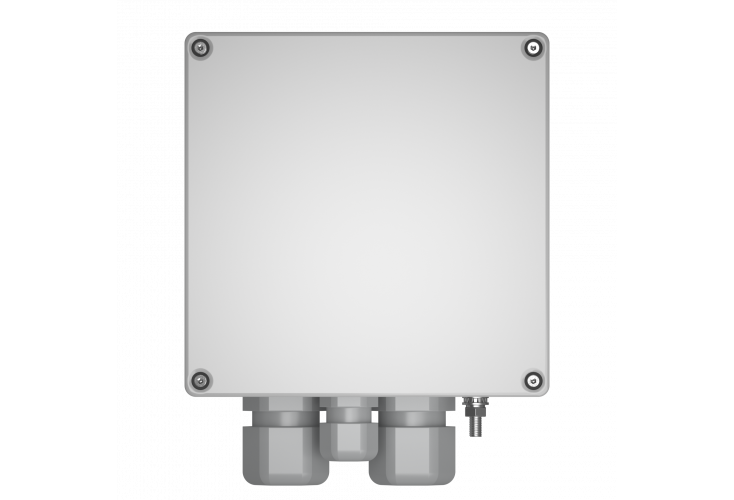

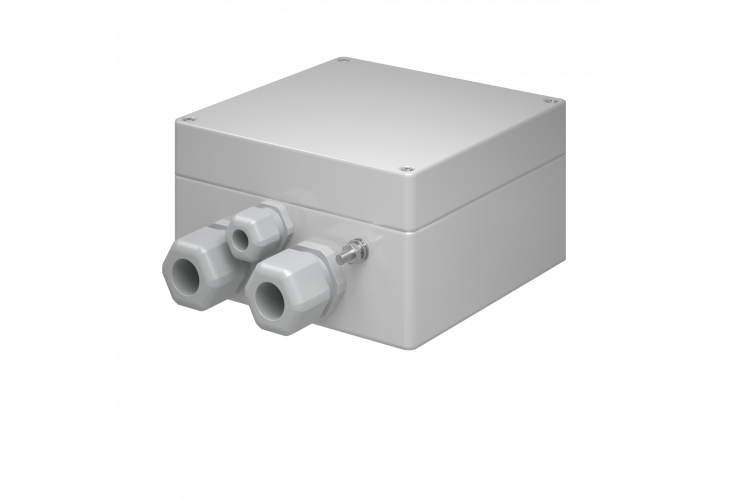

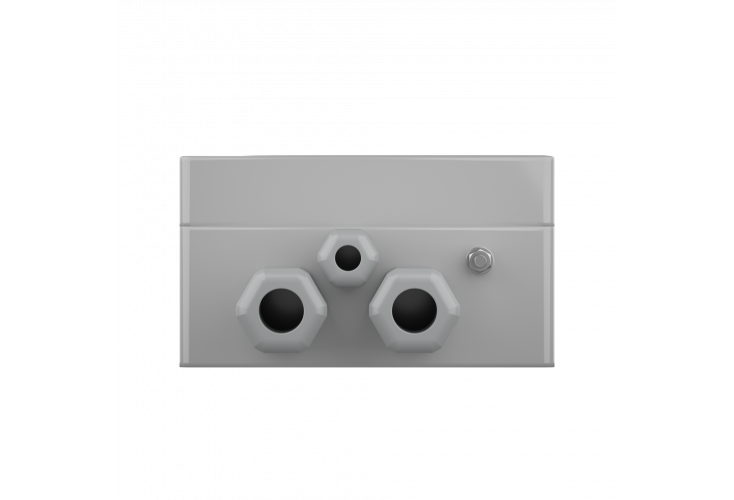

Shunt box SB-138 is designed to expand current measurement range and enhance functionality of Battery control panel BCP-136 (BCP-136-01) with relation to current measurement, and other indicating and recording instruments.
|
Parameter |
Value |
|
Rated current, А |
60 (max. 80) |
|
Shunt resistance, µΩ |
120.0 ± 1.2 |
|
Operating temperature, °С |
-15 to +55 |
|
Protection degree |
IP65 |
|
Weight, kg |
1.1 |
