UT-xxxC
Marine convection heater
- Description
- Specifications
- Files
- Support
- Where to buy

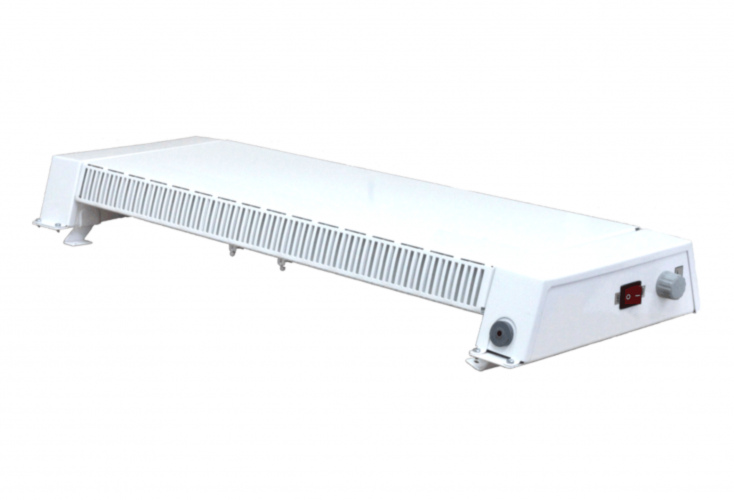

The marine convection heaters (UT) are stationary units with tubular heating elements, which are ideal for room heating in any navigational area (not containing any explosive mixtures in the air). The heaters can also be used in an industrial environment. Designed for installation in a very humid environment (IP 44).
- Overall and mounting dimensions
- Functional scheme
| Technical specifications | |||||
| UT-300C | UT-600C | UT-800C | UT-1200C | UT-1800C | |
| Weight | 5.5 kg | 7.5 kg | 9 kg | 11 kg | 14 kg |
| Power consumption | 300 W | 600 W | 800 W | 1200 W | 1800 W |
| Heated volume (m3) | 73 | 143 | 193 | 283 | 423 |
| IP rating | IP 44 | ||||
| Power supply voltage | 220/380 V 50 Hz | ||||
| Storage temperature | -55…+70 °С | ||||
| Operating temperature | -20…+55 °С | ||||
- Certificates
- Type approval certificate of Russian River Register of Shipping (pdf, 600,08 KB)
- Type approval certificate of Russian Maritime Register of Shipping (RU | EN) - NPK Morsvyazavtomatica (pdf, 586,15 KB)
- Booklets
- Booklet (pdf, 420,63 KB)
