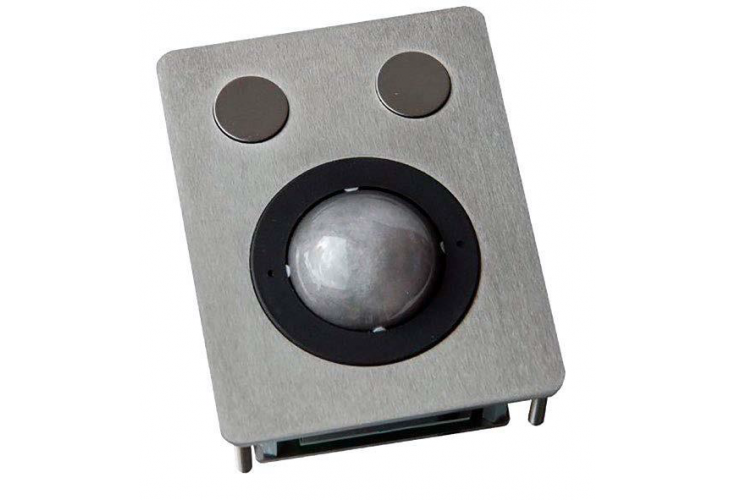

TBM-xxxx
Trackball manipulators
- Description
- Specifications
- Files
- Support
- Where to buy
- General characteristics of TBM-xxxx
-
Parameter
Value
Protection degree
IP54 (front panel)
Operating temperature, °С
–15 to +55
Limiting temperature, °C
–60 to +70
Type of connectors 1)
standard or protective
1) Depending on the Product’s type. For the detailed specifications, see Technical description
- Technical specifications TBM-2368, TBM-2378
-
Parameter
Value
TBM-2368
TBM-2378
Interface
USB
PS/2
Number of manipulator keys, pcs.
2
Key life, mln. clicks
min. 3
Key travel, mm
0.5
Keystroke force, N
4
Type of manipulator
laser
Ball diameter, mm
38
Trackball life, mln. rotations
2
Mounting
panel
Weight, kg
0.6
Trackball material
phenol resin
Front panel material
stainless steel
- Technical specifications TBM-2369, TBM-2379
-
Parameter
Value
TBM-2369
TBM-2379
Interface
USB
PS/2
Number of manipulator keys, pcs.
3
Key life, mln. clicks
min. 3
Key travel, mm
0.5
Keystroke force, N
4
Type of manipulator
laser
Ball diameter, mm
50
Trackball life, mln. rotations
2
Mounting
panel
Weight, kg
0.6
Trackball material
phenol resin
Front panel material
stainless steel
- Technical specifications TBM-1468, TBM-1478
-
Parameter
Value
TBM-1468
TBM-1478
Interface
USB
PS/2
Number of manipulator keys, pcs.
3
Key life, mln. clicks
min. 1
Key travel, mm
0.3
Keystroke force, N
1.5
Type of manipulator
infrared
Ball diameter, mm
50
Mounting
panel
Weight, kg
0.5
Housing material
epoxy plastic, ABS plastic
- Technical specifications TBM-23678
-
Parameter
Value
TBM-23678
Interface
USB (PS/2)
Number of manipulator keys, pcs.
3
Key life, mln. clicks
min. 1
Key travel, mm
1.3
Keystroke force, N
4
Manipulator type
mechanical
Ball diameter, mm
50
Trackball life, mln. rotations
2
Mounting
panel
Weight, kg
0.6
Trackball material
phenol resin
Front panel material
stainless steel
