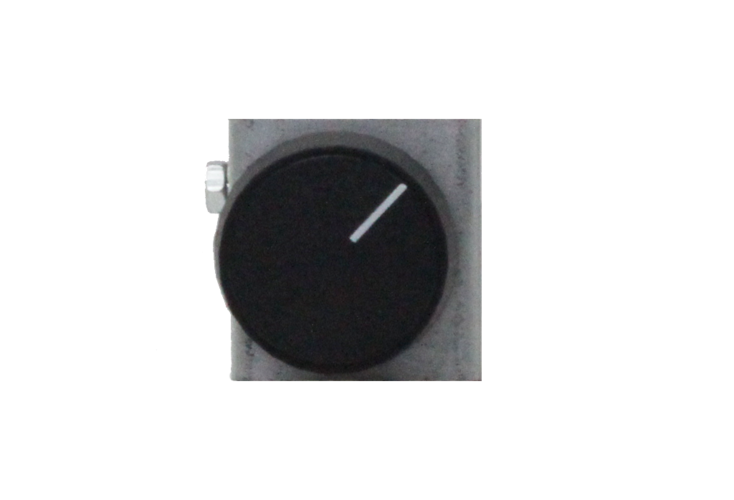

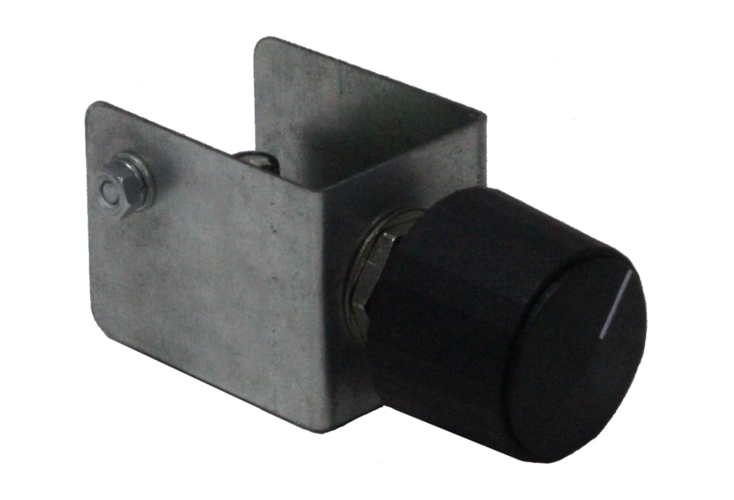

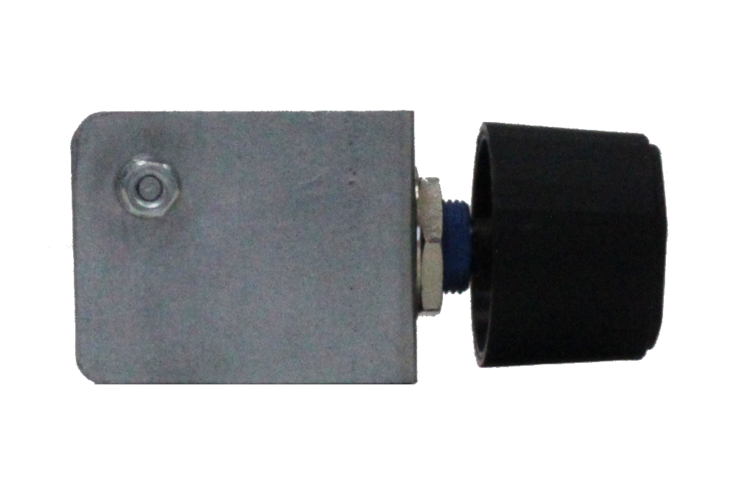

The DM-107 Dimmer is a low-voltage power regulator for DC circuits, designed for a smooth adjustment of load power by potentiometer rotation. The load may be resistive (lighting lamps, resistors, etc.) and inductive (solenoids, valves, engines, etc.).
  • Overall and mounting dimensions
  • Functional scheme
  • Wiring diagram
Technical specifications
Dimensions 62х28х28 mm
Storage temperature -55…+75 °С
Operating temperature -20…+60 °С
Weight 0.12 kg
Power supply voltage 12…30 VDC
Current consumption max 3 mA
Max current 3 A
Regulated power max 100 W
Tuning range 0…90%
Limit of min power 0…50%
Frequency >250 Hz
Coefficient of efficiency min 90%
