SCB-133
Connection box for Inmarsat mini-С SAILOR
- Description
- Specifications
- Files
- Support
- Where to buy

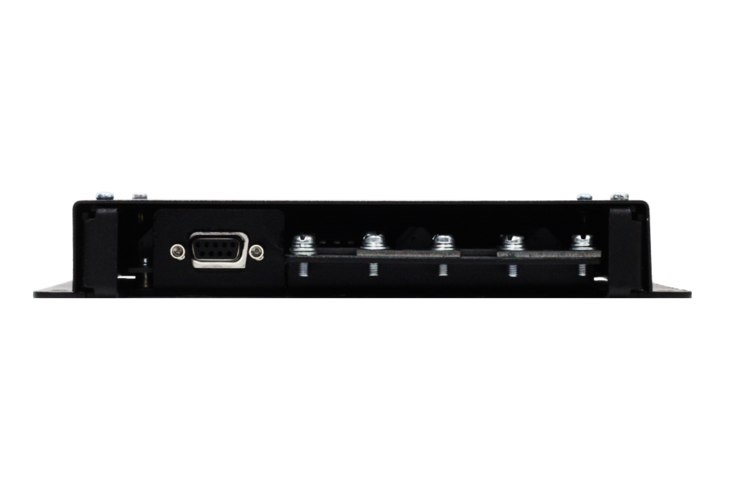

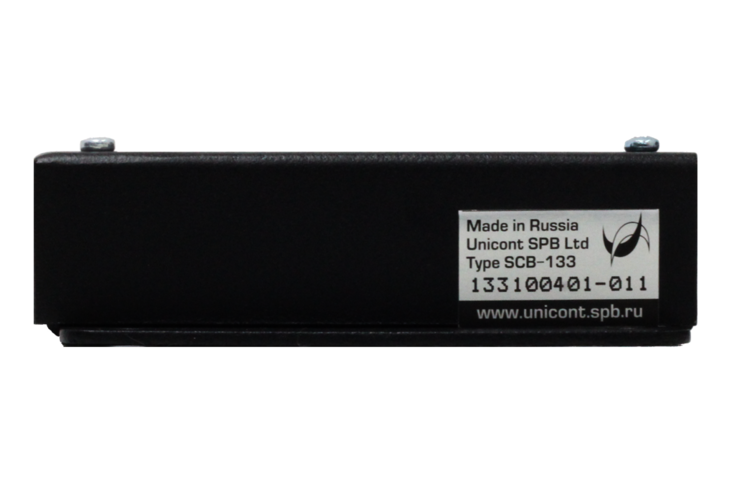

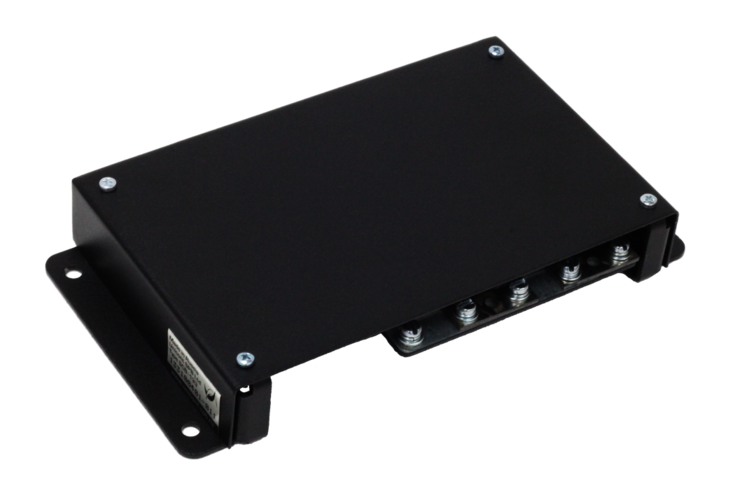

SCB-133 Connection box is an analog of TT-3616D (SAILOR) Connection box. The device is designed for combined application with Inmarsat mini-С SAILOR Ship Earth Stations of TT-3026xx (TT-3026M,TT- 3026S,TT-3026D,TT-3026L, TT-3000SSA etc.) family.
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications | |
| Dimensions | 108 x 205 x 30 mm |
| IP rating | IP 22 |
| Power supply voltage | 10.5…32 VDC |
| Max power consumption | 3 W |
| Storage temperature | -20…+70 °С |
| Operating temperature | -15…+55 °С |
| Weight | max 1 kg |
