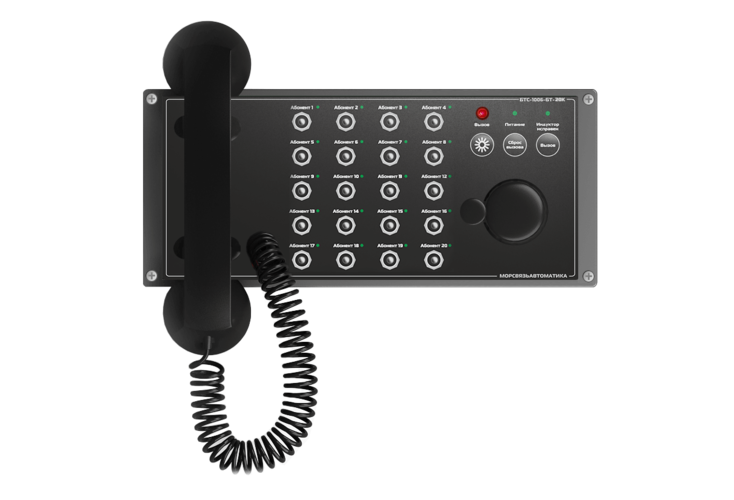

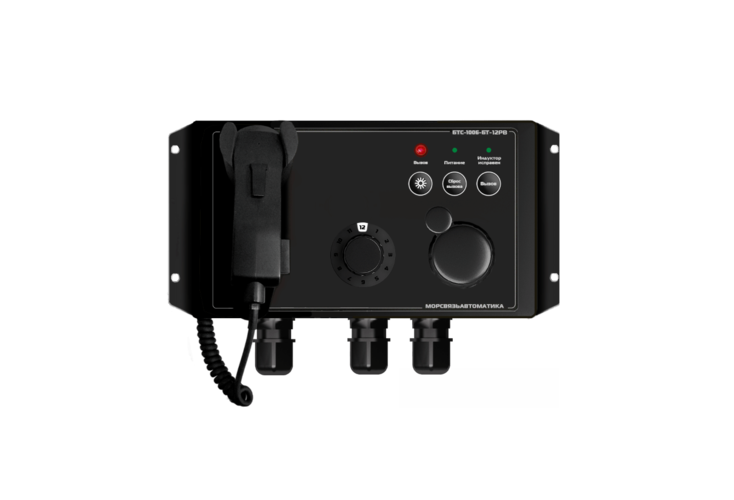

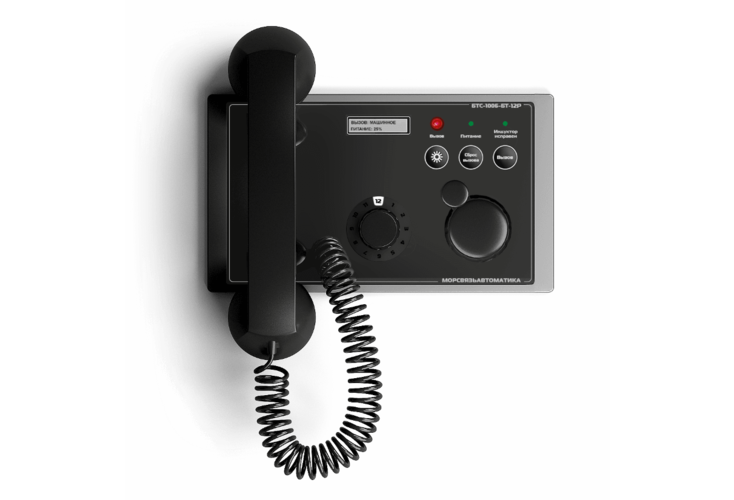

BTS-1006
Battery less telephone system
- Description
- Specifications
- Files
- Support
- Where to buy
The BLTS-1006 battery less telephone system ensures telephone communication both in routine operation and emergencies in of internal communication systems or power failure.
Features:
— The system provides pair, broadcast, selective and conference communication (max. 24 stations)
— The system can be used for public address
— Communication and addressed calls from any system unit
— Communication in harsh environments:
— when respiratory protection is on (using portable communication devices with microphones)
— in noisy areas, max. 130 dB (using a headset or intercom helmet)
— LEDs for power, call and inductor state of health
— Light and sound signals for incoming calls
— A headset and external in-call light signaling units can be connected
— Automatic switchover to standby power in of power supply failure
— Different configurations of telephone networks (subscribers are connected by dedicated or multiple channels)
— Different types of mounting => hinge, desktop or console; on open decks or inside, including noisy areas
Features:
— The system provides pair, broadcast, selective and conference communication (max. 24 stations)
— The system can be used for public address
— Communication and addressed calls from any system unit
— Communication in harsh environments:
— when respiratory protection is on (using portable communication devices with microphones)
— in noisy areas, max. 130 dB (using a headset or intercom helmet)
— LEDs for power, call and inductor state of health
— Light and sound signals for incoming calls
— A headset and external in-call light signaling units can be connected
— Automatic switchover to standby power in of power supply failure
— Different configurations of telephone networks (subscribers are connected by dedicated or multiple channels)
— Different types of mounting => hinge, desktop or console; on open decks or inside, including noisy areas
- Wiring diagram
| Technical specifications | |
| Parameter | Value |
| Power supply voltage | batteryless (energy is supplied from generator rotation and accumulated energy) external, from the mains 24 V (18…36 V DC), loudspeaker mode |
| Number of users | 2-24 (expandable) Parallel connection devices: 1-line- PH-1LA, PH-1L, PH-1LR, PH-1RW 12-line - PH-12L, PH-12LR, PH-12LWP, PH-12LWP 24-line - PH-24L, PH-24LR, PH-24RW, PH-24LWP Switching units (with isolated lines): 6-channel - PH-6, PH-6A 12-channel - PH-12, PH-12A 20-channel - PH-20, PH-20A |
| Operating mode | Battery less communication, loudspeaker (if external power supply is available) |
| Communication time (self-contained power supply) | For pair communication - min 10 min (after 1 rotation cycle of generator with the rate 3 rev/s within 3-5 s) |
| Communication line length | Max. 400 m |
| Functional capabilities | two types of in-calls signals caller number identification (for devices equipped with LCD) call mode selection (with or without camp-on) |
| Operating temperature | -15…+55 °C – installation inside -40…+55 °C – installation on open decks |
