ITS-1010

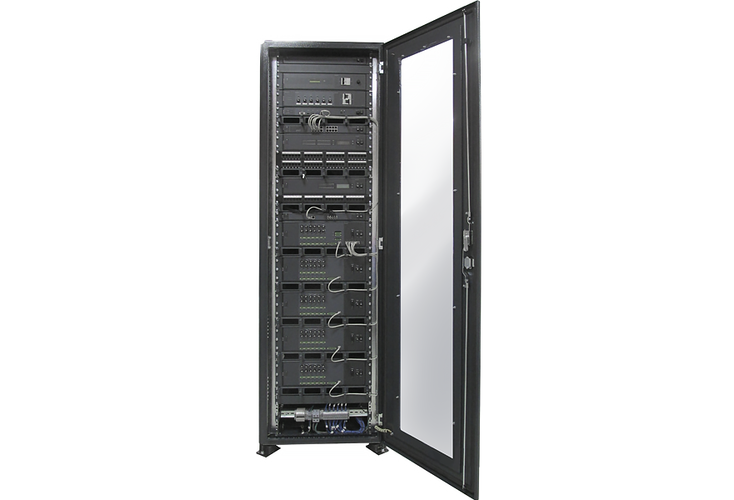

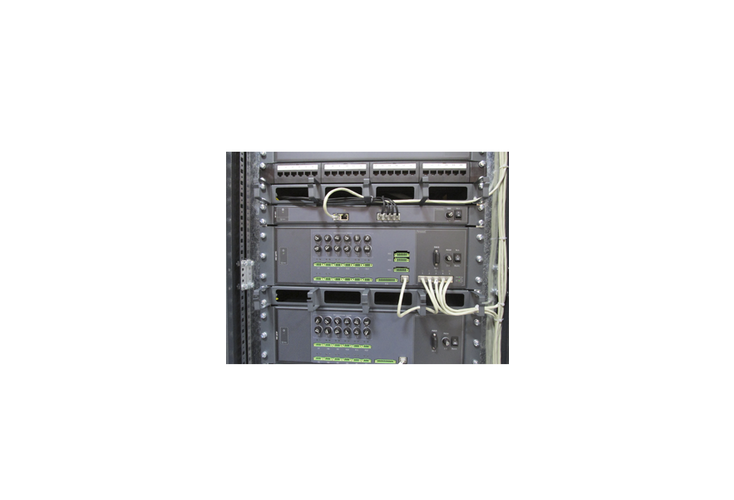

Digital integrated shipboard communication system, type ITS-1010
- Description
- Specifications
- Files
- Support
- Where to buy
The system offers
Public address communication in the following modes:
— pair communication mode allowing additional users to be quickly connected to a conference call
— selective or pre-defined conference call
— broadcast communication (commands are transmitted to all substations and all zones)
— emergency call.
Automatic telephone communication in the following modes:
— pair communication (forwarding call, forwarding call if the line is busy, return call, number repetition, abbreviated dialing, etc.) and priority caller
— selective or pre-defined conference call.
Radio telephone communication (RTC) with following capabilities:
— providing an extension (via base unit) to internal telephone sets (including other RTC devices)
— intercommunication within one base unit (the line is not busy).
— automatic telephone line with coastal stations
— video communication (using telephone sets of PT-VC type and digital PoE lines)
— announcement can be provided from user substations and PBX sets (requires external public address unit – at option)
— communication between users of loudspeaker system and PBX
— incoming call is indicated by external light and sound units
— automatic recording of voice messages
— administration, settings and diagnostics of the system are made by a PC.
Public address communication in the following modes:
— pair communication mode allowing additional users to be quickly connected to a conference call
— selective or pre-defined conference call
— broadcast communication (commands are transmitted to all substations and all zones)
— emergency call.
Automatic telephone communication in the following modes:
— pair communication (forwarding call, forwarding call if the line is busy, return call, number repetition, abbreviated dialing, etc.) and priority caller
— selective or pre-defined conference call.
Radio telephone communication (RTC) with following capabilities:
— providing an extension (via base unit) to internal telephone sets (including other RTC devices)
— intercommunication within one base unit (the line is not busy).
— automatic telephone line with coastal stations
— video communication (using telephone sets of PT-VC type and digital PoE lines)
— announcement can be provided from user substations and PBX sets (requires external public address unit – at option)
— communication between users of loudspeaker system and PBX
— incoming call is indicated by external light and sound units
— automatic recording of voice messages
— administration, settings and diagnostics of the system are made by a PC.
- Wiring diagram
| Technical specifications | |
| Parameter | Value |
| Power supply voltage | batteryless (energy is supplied from generator rotation and accumulated energy) external, from the mains 24V (18…36 VDC), loudspeaker mode |
| Number of users | 2-24 (expandable) Parallel connection devices: 1-line- PH-1LA, PH-1L, PH-1LR, PH-1RW 12-line - PH-12L, PH-12LR, PH-12LWP, PH-12LWP 24-line - PH-24L, PH-24LR, PH-24RW, PH-24LWP Switching units (with isolated lines): 6-channel - PH-6, PH-6A 12-channel - PH-12, PH-12A 20-channel - PH-20, PH-20A |
| Operating mode | Battery less communication, loudspeaker (if external power supply is available) |
| Communication time (self-contained power supply) | For pair communication - min 10 min (after 1 rotation cycle of generator with the rate of rotation 3 rev/s within 3-5 s) |
| Communication line length | max 400 m |
| Functional capabilities | two types of in-calls signals caller number identification (for devices equipped with LCD) call mode selection (with or without camp-on) |
| Operating temperature | -15…+55 °C – installation inside -40…+55 °C – installation on open decks |
- Certificates
- Type approval certificate of Russian River Register of Shipping (pdf, 3.98 MB)
- Type approval certificate of Russian Maritime Register of Shipping (RU | EN) - NPK Morsvyazavtomatica (pdf, 8.66 MB)
- Booklets
- Booklet (pdf, 829.65 KB)
