External sound reception system

The system receives external sound signals from all directions within bandwidth 70-820Hz, rebroadcasts the received signals to the appropriate location and equipment, indicating the sound signals source direction in relation to the vessel.

Features and advantages

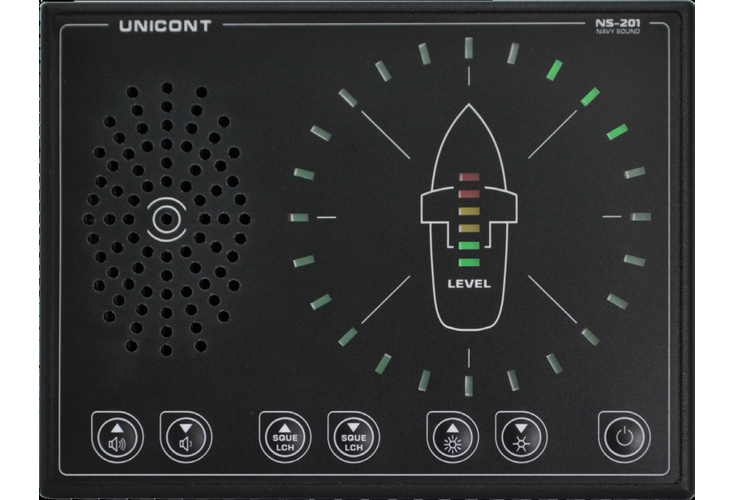

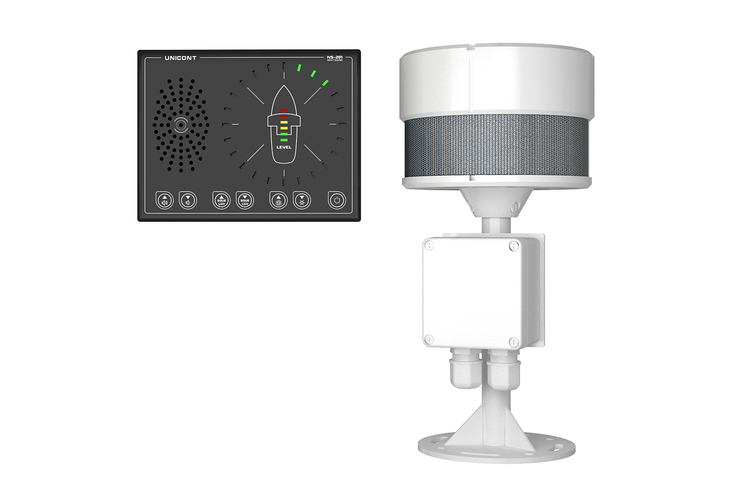

— The basic system includes a sound signal receiver (main unit) and microphone unit
— 3 compact omnidirectional microphones are combined in a compact unit
— Signals are received within of 70-820 Hz (2100 Hz - at option), other signals are disregarded by the system
— Built-in heating allows sensors to operate in cold environment
— Additional repeater and loudspeaker can be connected.


— Trigger threshold (exceeding the noise level)
— Loudspeaker volume
— Backlight of the control buttons.
  • Overall and mounting dimensions
  • Functional scheme
  • Wiring diagram
Technical specifications
Parameter Value
Loudspeaker power (built-in/external) 5W / 15W
Number of microphones 3 mics combined (omnidirectional)
Pitch of bearing indicator 15°
NS-201CU / NS-201R NS-201M
Operating temperature -15 °C .. + 55 °C -40 °C .. + 55 °C
Storage temperature -60 °C .. + 70 °C -60 °C .. + 70 °C
