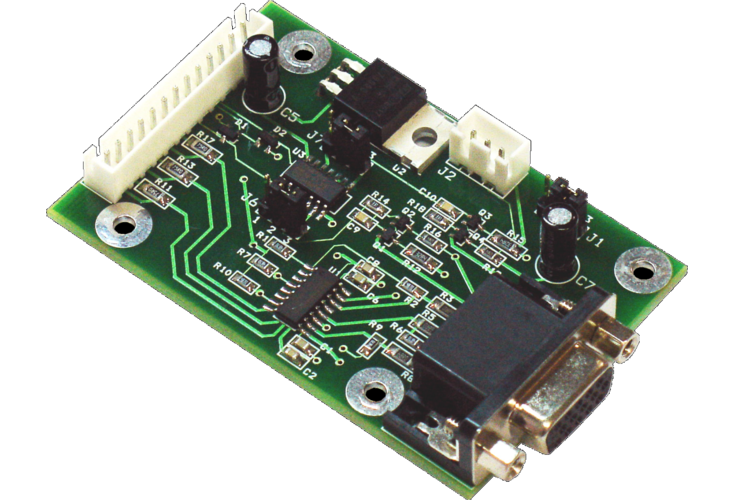

VGA-119
VGA-interface
- Description
- Specifications
- Files
- Support
- Where to buy
The VGA-119 connects VGA-radars and other devices to voyage data recorders or simplified voyage data recorders. The device provides amplification and jamming filtration of input VGA-signal, resolution up to 1600x1200.
Install in a dry environment (IP22).
Install in a dry environment (IP22).
- Overall and mounting dimensions
- Functional scheme
- Wiring diagram
| Technical specifications | |
| Dimensions | 159x108x47 mm |
| Storage temperature | -60…+70 °С |
| Operating temperature | -20…+55 °С |
| Weight | max 0.4 kg |
| Power supply voltage | 5 VDC |
| Max consumption current | 300 mA |
| Max output load (per channel) | 60 mA |
| Max vertical frequency | 85 Hz |
| Max horizontal frequency | 110 kHz |
| Max video resolution | 1600x1200 |
- Booklets
- Booklet (pdf, 800,35 KB)
