DR-109

Digital repeater (LED)

  • Description
  • Specifications
  • Files
  • Support
  • Where to buy

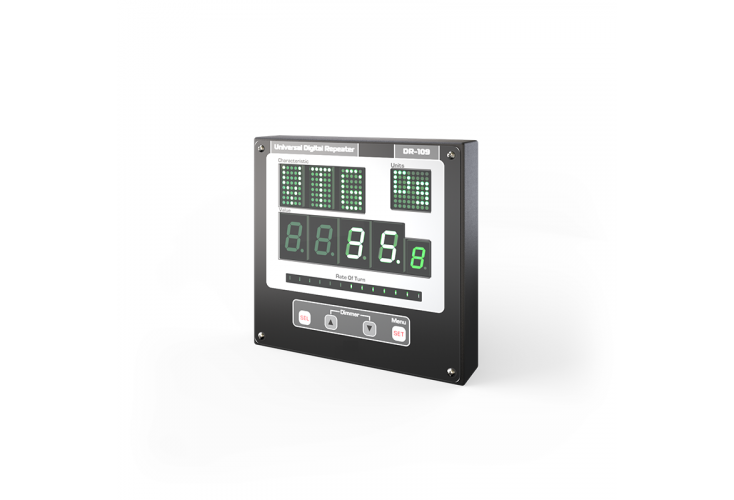

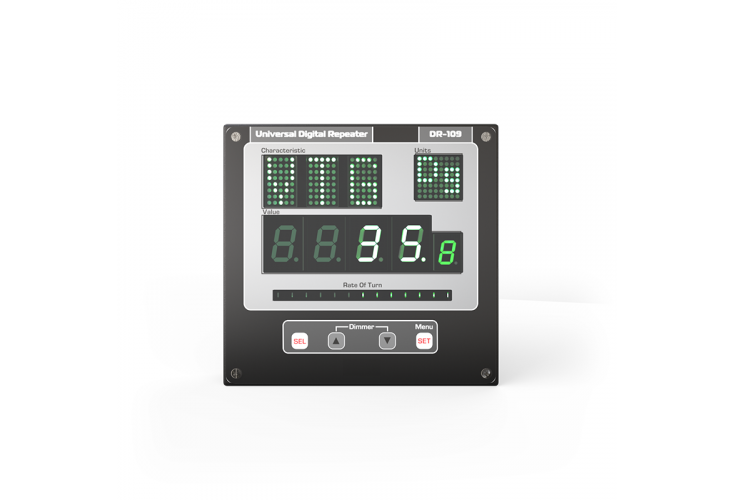

The DR-109 multipurpose digital repeater allows the visual indication of digital data received in NMEA 0183 sentences through RS-232 and RS-422/485 serial interfaces. The DR-109 provides sequential displaying of up to 3 data types on the built-in LED indicator (ship speed and heading, depth below keel, current time and weather conditions). The data of ship turn rate may be displayed regardless of main data on the built-in LED linear.

General characteristics

Dimensions

DR-109:

  • mounting into console – 200,1 х 25,6 х 190,1 mm
  • wall mounting – 206,2 х 45,7 х 229,2 mm
  • mounting on a bracket – 206,2 х 132,0 х 190,0 mm

DR-109W:

  • wall mounting – 252 х 75 х 227 mm
  • table mounting – 211 х 141 х 203 mm

IP rating

IP22 (DR-109)

IP56 (DR-109W)

Limiting temperature

–60°С …+70°С

Operating temperature

–15°С …+55°С (DR-109)

–40°С …+55°С (DR-109W)

Weight

DR-109:

  • mounting into console – 0,58 kg
  • wall mounting – 1,40 kg
  • mounting on a bracket – 1,63 kg



DR-109W:

  • wall mounting – 2,30 kg
  • table mounting – 2,60 kg

Type of indicator

led

Casing material

metal

Keyboard material (keys)

membrane (bulge)

Electrical characteristics

Power supply voltage

24 (9,6…36,0) VDC

Power consumption

5 W

Galvanic isolation from the power mains

+

Overcurrent protection

+

Reverse polarity protection

+

Inputs and outputs

Number of ports

1 × RS-232 galvanically isolated (input and output port);

1 × RS-422 galvanically isolated (input port);

1 × RS-422 galvanically isolated (output port)

Data baud rate (reception / transmission)

4800; 9600; 19200; 28800; 38400; 56000; 57600; bit/s

Input NMEA sentences

DBK, DBT, DPT, HDG, HDM, HDT, MTW,

MWV, ROT, RSA, VBW, VDR, VHW, VLW,

VPW, VTG, VWR, WCV, ZDA, ZFO, ZTG

Input data format

IEC61162-1.2 (NMEA 0183 version 1(2))

Output data format

NMEA 0183 (input retransmission)
